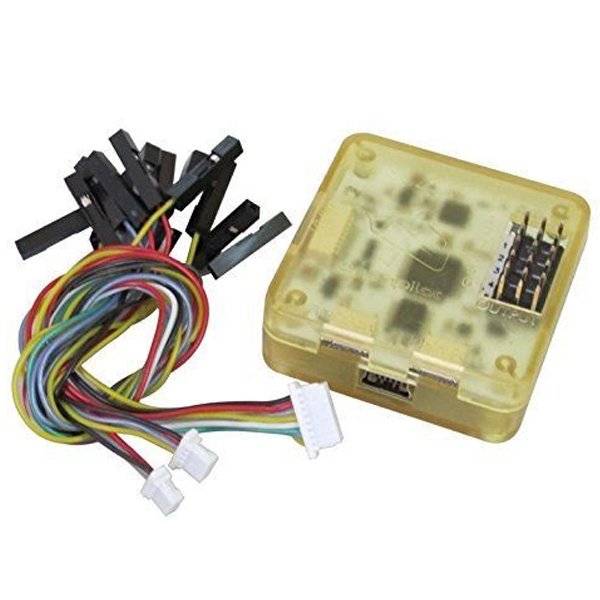

CC3D Openpilot Open Source Flight Controller 32 Bits Processor with Case

The CC3D board is an all-in-one hardware that runs the stabilization OpenPilot firmware. It can be configured to monitor each cell of fly-wing flies on an octocopter and be monitored via the software OpenPilot Ground Control Station (GCS).
CopterControl from the OpenPilot project represents a new generation of multi-purpose aircraft stabilization platforms.

The CC3D has been designed from the ground up to the following features:
– A multi-rotor controller with AutoLevel, including TriCopters, QuadCopters and HexaCopters
– A flybarless helicopter controller with AutoLevel
– A Fixed Wing UAV controller

• The CopterControl hardware has the following properties:
• Powerful STM32 32-bit microcontroller run at 90MIPs with 128 KB Flash and 20KB RAM
• 3 axis high performance MEMS gyros and 3 axis high performance MEMS accelerometers
• Tiny 36mmx36mm 4 layer PCB for superior electrical noise reduction and flight performance.
• Software support for Windows, Mac and Linux
• Direct high speed USB support no drivers required, a real plug & play device.
• Spectrum satellite receiver support
• Innovative FlexiPort technology for maximum connection flexibility
• 4 MBits board EEPROM for configuration memory
