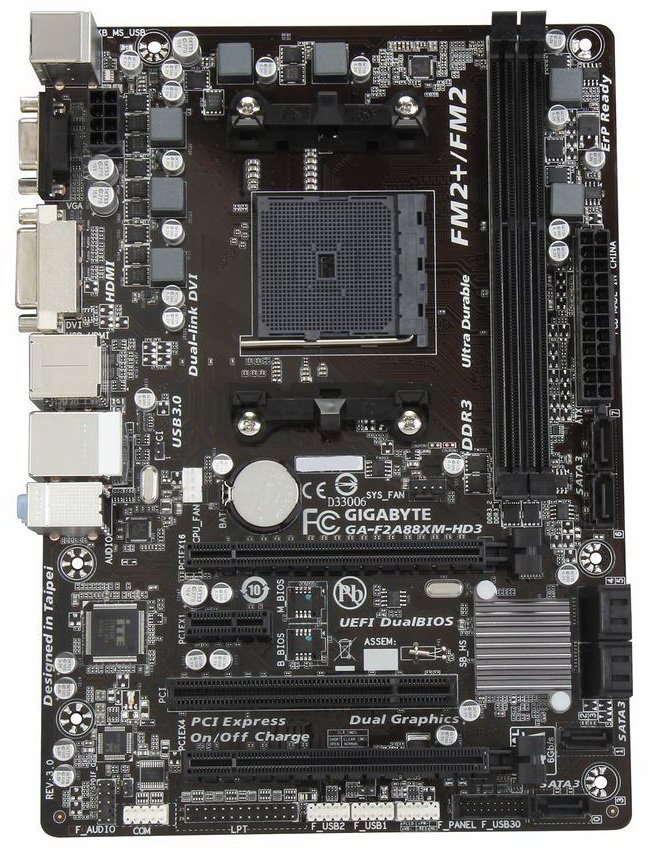

GIGABYTE GA-F2A88XM-D3H FM2+ / FM2 AMD A88X (Bolton D4) SATA 6Gb/s USB 3.0 HDMI Micro ATX AMD Motherboard

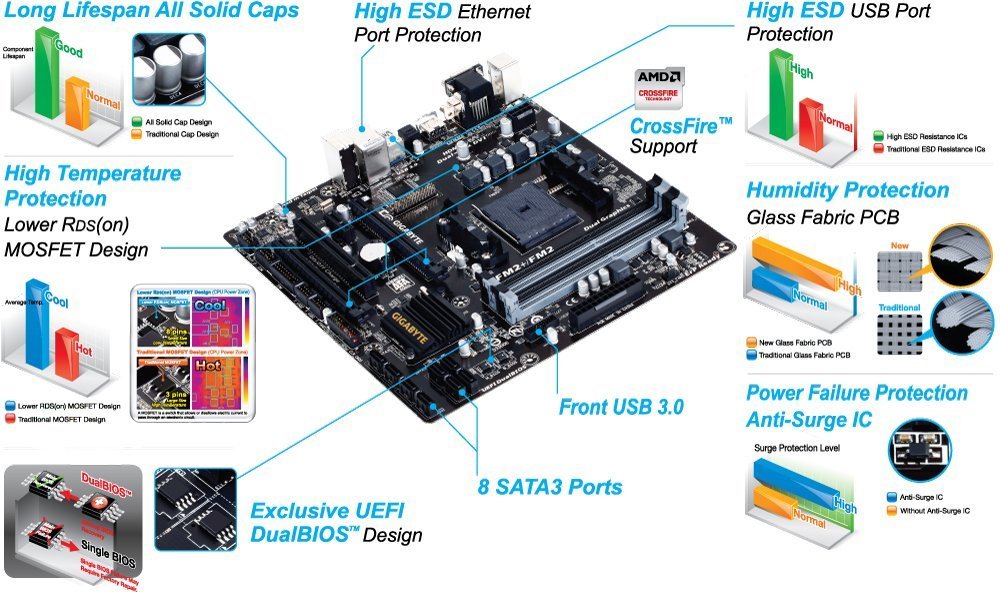

Socket FM2+ supports AMD FM2+/FM2 A-series APU. GIGABYTE Ultra Durable 4 Plus Technology. GIGABYTE UEFI Dual BIOS. 2-way CrossFire Support. GIGABYTE On/Off Charge for USB devices. 4 USB 3.0 ports with GIGABYTE 3x USB power. HDMI, Dual-link DVI, D-sub ports for Triple-Monitor support. High ESD Protection on GbE LAN and USB ports. All solid capacitors design.

Feature

• Socket FM2+
• Chipset: AMD A88X
• Memory: 4x DDR3-2133/ 1866/ 1600/ 1333 DIMM Slots, Dual Channel, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
• SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10 and JBOD
• APU: FM2+ Socket, AMD A series processors, AMD Athlon series processors
• Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory, DDR3 2133/1866/1600/1333 MHz memory modules
