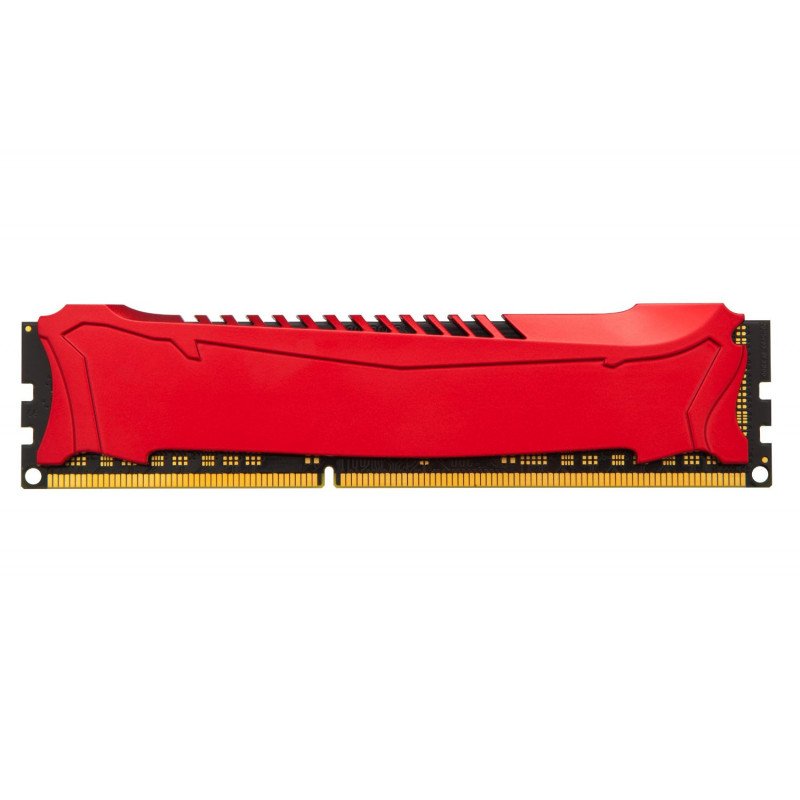

KINGSTON RAM HYPERX SAVAGE 4GB (1X4GB) DDR3-2133 MHz (HX321C11SR/4)

HyperX HX321C11SR/4 is a 512M x 64-bit (4GB) DDR3-2133 CL11 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module supports Intel® XMP (Extreme Memory Profiles). Each module has been tested to run at DDR3-2133 at a low latency timing of 11-12-12 at 1.6V. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FEATURES

•  JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
•  VDDQ = 1.5V (1.425V ~ 1.575V)
•  800MHz fCK for 1600Mb/sec/pin
•  8 independent internal banks
•  Programmable CAS latency: 11, 10, 9, 8, 7, 6
•  Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
•  8-bit pre-fetch
•  Burst Length: 8 (interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using 12 or MRS)
•  Bi-directional Differential Data Strobe
•  Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
•  On Die Termination using ODT pin
•  Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°Cº
•  Asynchronous Reset
•  Height 1.311” (33.30mm), w/heatsink, single sided component
