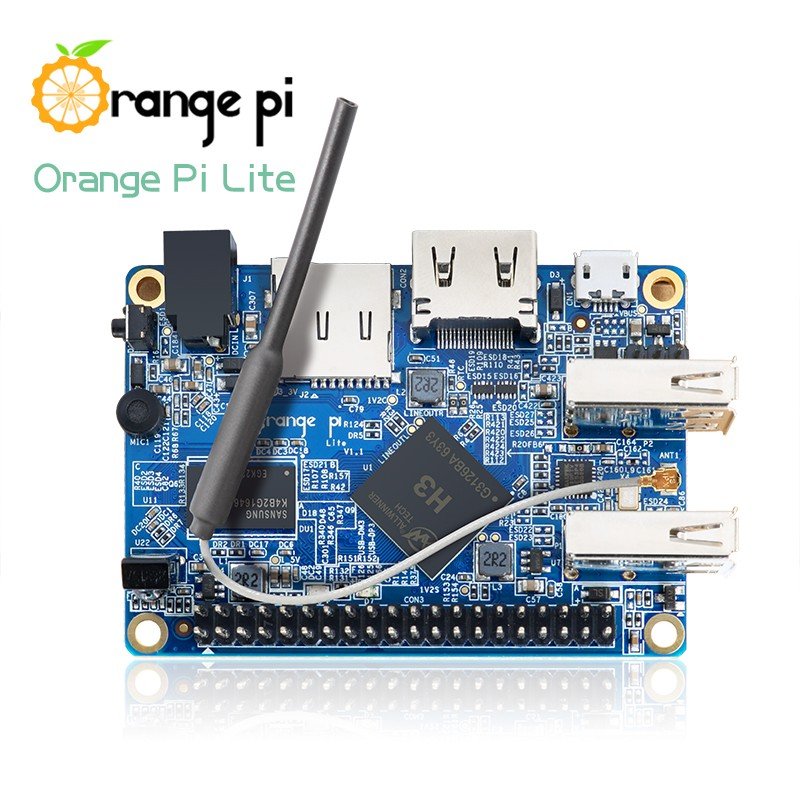

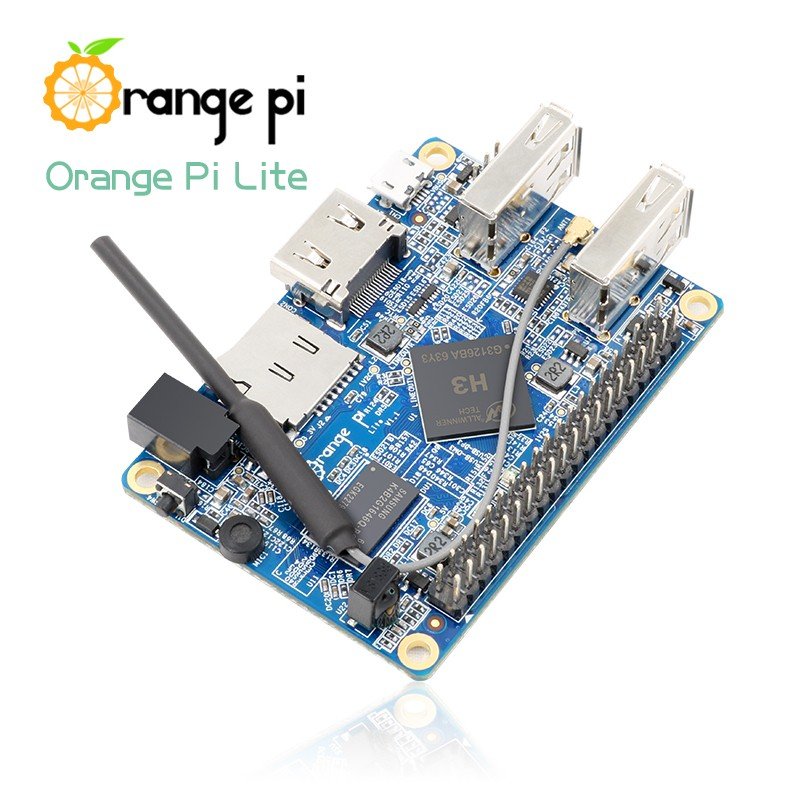

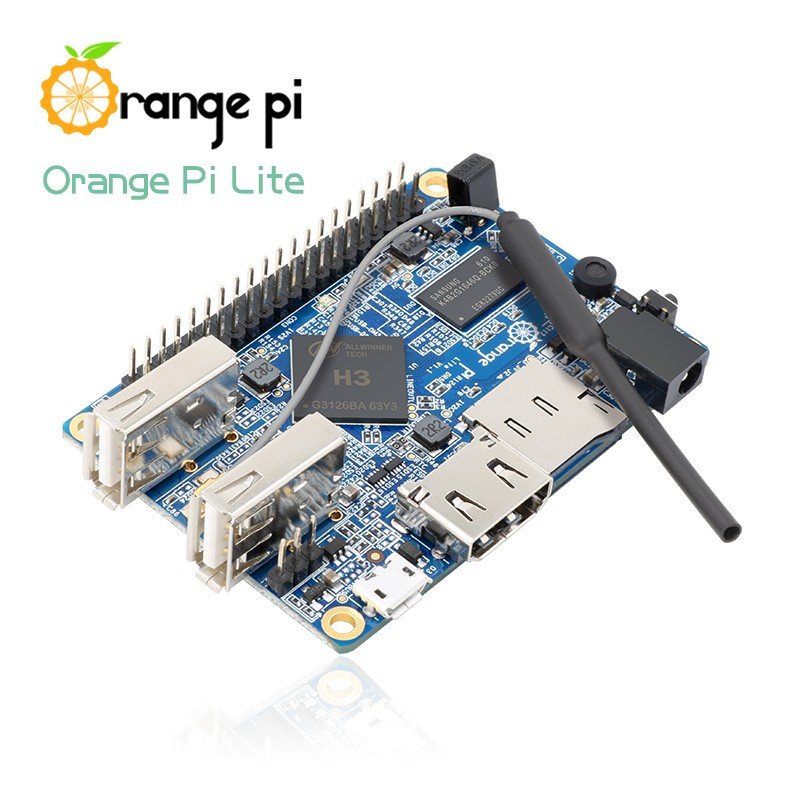

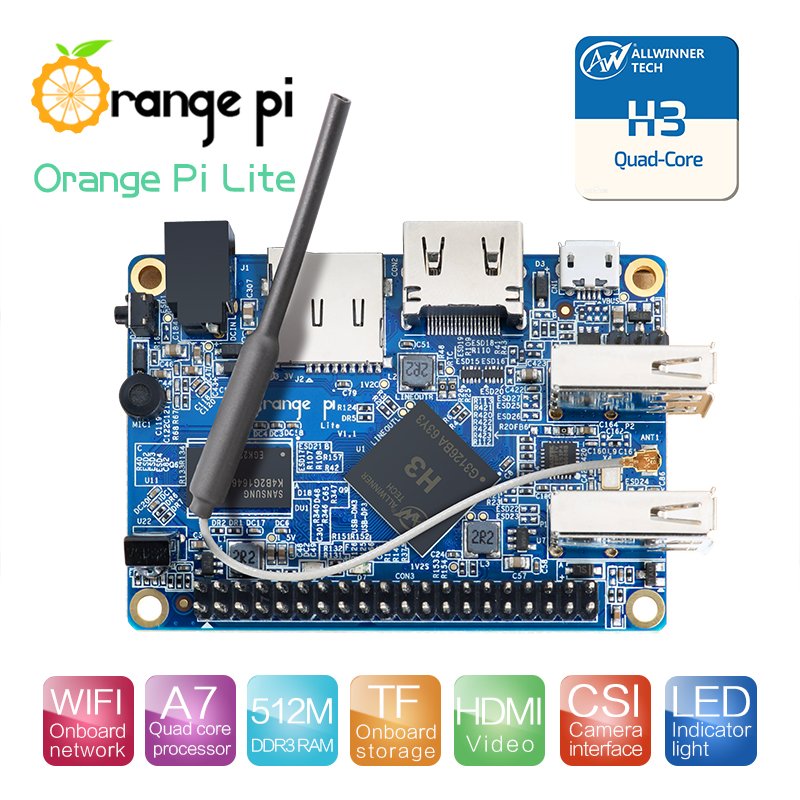

Orange Pi Lite with WiFi Antenna

Supports Ubuntu, Linux and Android – Mini PC Beyond

It’s Compatible with All Raspberry Pi 1,2 and 3 Boards

What is Orange Pi Lite?

It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM

Who’s it for?

Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.

What can I do with Orange Pi Lite?

You can use Orange Pi to build…

• A computer
• A wireless server
• Games
• Music and sounds
• HD video
• A speaker
• Android
• Scratch
• Pretty much anything else, because Orange Pi is open source

Orange Pi Lite Hardware specification
CPU	H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU	·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0
Memory (SDRAM)	512MB DDR3 (shared with GPU)
Onboard Storage	TF card (Max. 64GB) / MMC card slot
Wifi Antenne	Yes
Video Input	A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface It Supports CCIR656 protocol for NTSC and PAL It also supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps
Audio Input	MIC
Video Outputs	Orange Pi Supports HDMI output with HDCP It Supports HDMI CEC It also Supports HDMI 30 function
Audio Output	HDMI
Power Source	DC input, USB OTG input don’t supply power
USB 2.0 Ports	Two USB 2.0 HOST, one USB 2.0 OTG
Buttons	Power button
Low-level peripherals	40 Pins Header, Compatible with Raspberry Pi B+
GPIO(1×3) pin	UART,ground.
LED	Power led & Status led
Key	POWER
Supported OS	Android Lubuntu, Debian, Rasberry Pi Image
Interface definition
Product size		69mm × 48mm
Weight		36g
