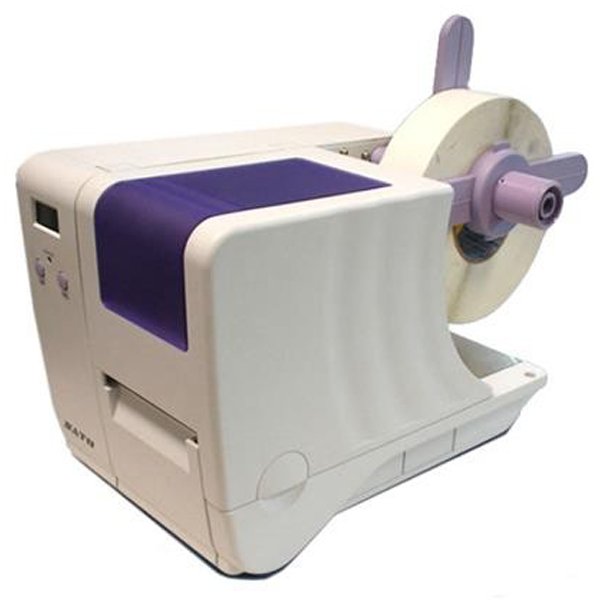

Sato DR3 Desktop Barcode Printer

Stand-alone printing solution – No PC required
Manage label printing using the keypad
Speed and quality printing
Specially-designed accessories (cutter & stacker) for convenient on-demand printing
Accommodates large label rolls

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Sato DR3 Desktop Barcode Printer

Printing Characteristics
Print Length	181mm, 7.13”
Print Method	Direct Thermal/Thermal Transfer
Print Speed	127mm/sec (5ips)
Print Width	80mm, 3.15”
Resolution	8 dots/mm (203dpi)

Media Characteristics
Label Length	mm ~ 178mm, 0.63” ~ 7.01” (including backing paper 19mm ~ 181mm, 0.75” ~ 7.13”
Media Core Diameter	core size : 38.1mm, 101.60mm, 1.5”, 4”
Media Roll Diameter	Outer Diameter Max 250mm, 9.84” (Paper
Media Sensor	Reflective Sensor (for use with pre-printed marks) See-Through Sensor (for die-cut labels with gaps and tags with center or side holes) Jump hole Sensor (for tags with jump hole)
Media Thickness	0.070 ~ 0.280mm, 0.003’’ ~ 0.011’
Media Width	Width: 32mm ~ 80mm, 1.26” ~ 3.15” • Pitch: 25mm ~ 181mm, 0.99” ~ 7.13”

Ribbon Characteristics
Ribbon Length	300m, 984.25ft (varies on ribbon type)
Ribbon Width	84mm, 3.31”

Performance Characteristics
Interface	RS-232C (High-speed), IEEE 1284 , LAN or USBExternal Port connector, RS-232C D-SUB9 pins (exclusively for Keypad)
Memory	Flash-ROM: 8MB
Processor	32 bit RISC

Fonts / Graphics / Symbologies
Barcode Symbologies	1D:UPC-A/E, JAN/EAN, CODE 39, CODE 93, CODE 128, GS1-128 (UCC/EAN128), CODABAR (NW-7), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI, BOOKLAND, POSTNET, GS1 DataBar
	2D:QRCode (including Micro QR), PDF 417 (including Micro PDF417), MaxiCode , GS1 Data Matrix (ECC200)
Character Sets	XU, XS, XM, XB, XL, OCR-A, OCR-B, Price, POP1, POP2, POP3

Environment Characteristics
Operating Environment	: 5 ~ 400C / 30 ~ 80% (No condensation)
Storage Environment	-5 ~ 600C / 30 ~ 90% (No condensation)
User Options	Cutter, Stacker, External Rewinder, Dispenser, Keypad, Calendar IC

Physical Characteristics
Dimensions (W x L x H)	211mm (W) x 350mm (D) x 240mm (H), 8.31”(W) x 13.79” (D) x 9.46” (H)
Power Supply	Input voltage : AC100V-240V +/-10% (full range) Rated voltage : AC100V-240V (full range
Weight	Approx. 8kg

Options
Regulatory Approvals	FCC15B Class B, CE (EN55022), EN55024 , CCC, MIC Safety Standards : UL60950-1 (2001), IEC/EN60950-1, CCC Other Standards : RoHS compliant
