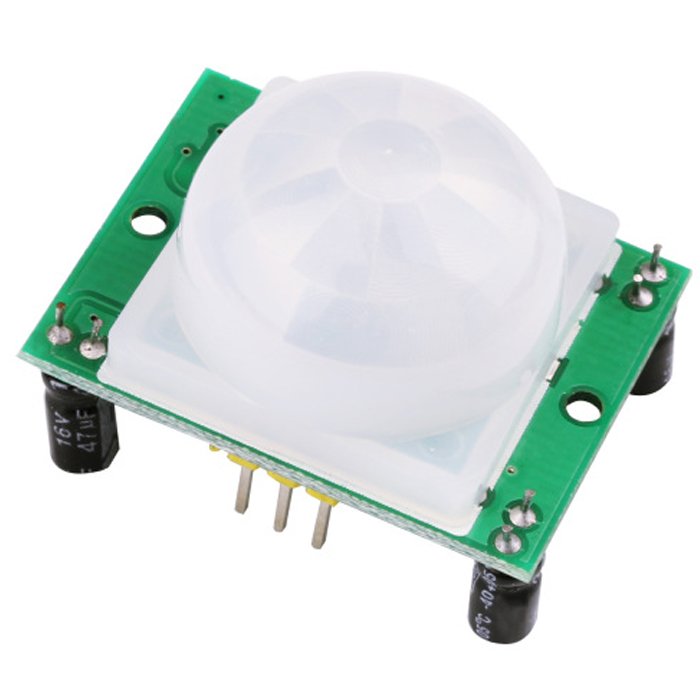

SR501 HC-SR501 Adjust IR Pyroelectric Infrared PIR module Motion Sensor Detector Module

Human Infrared Sensor Module
Condition: New
:Product Feature:
Probe LHI778, high sensitivity
Technical parameters: 1.Operating voltage: DC5V to 20V
2.Static power consumption: 65 microamps
3.Level output: 3.3V, low 0V
4.Delay time: adjustable (0.3 seconds to 18 seconds)
5.Blockade Time: 0.2 seconds
6.Trigger Mode: L can not be repeated, H can be repeated default value H
7.Sensing range: less than 120 degree cone angle of less than 7 meters
8.Operating temperature: -15 to +70 degrees
9.PCB Dimensions: 32 * 24mm, screw hole distance 28mm, screw aperture 2mm sensor lens size: (diameter): 23mm (default)
