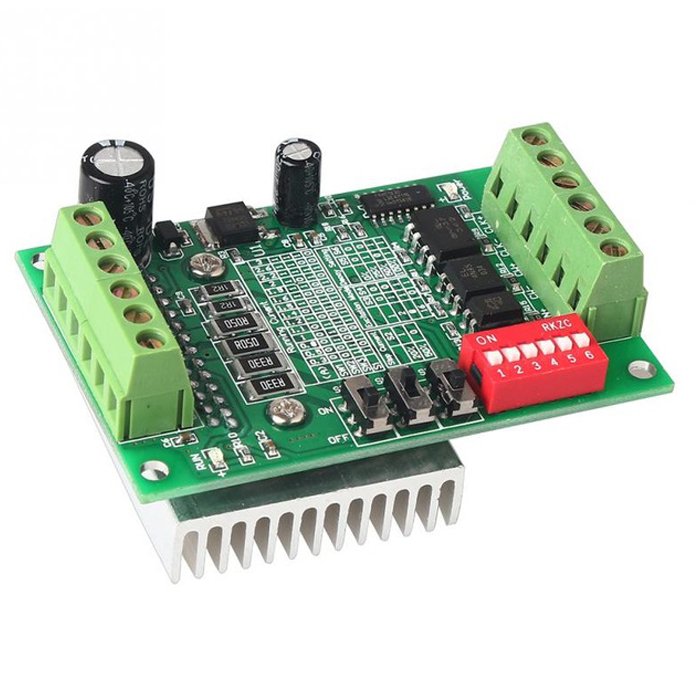

TB6560 3a Driver Board CNC Router Single 1Axis Controller Stepper Motor Driver

100% brand new and high quality Size: 75*50*35(mm)(LxWxH) / 2.95”x1.96”x1.37” (approx) Rated maximum output: ± 3A, peak 3.5A. Working voltage DC 10V-35V. Recommended using a switching power supply DC24V power supply. Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.

For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function. 6N137 high-speed optical coupling, guarantee high speed without losing

For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function. 6N137 high-speed optical coupling, guarantee high speed without losing step. Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions. Features similar products: current grade-by-adjustable to meet your demand for a variety of applications. semi-automatic flow adjustable. 6N137 high-speed optical coupling, guarantee high speed without losing

Features similar products: current grade-by-adjustable to meet your demand for a variety of applications. semi-automatic flow adjustable. 6N137 high-speed optical coupling, guarantee high speed without losing step. plate printed setup instructions operation without manual also. thick teeth radiator, good heat dissipation. Package Including: 1PC×Stepper Motor Drivers
