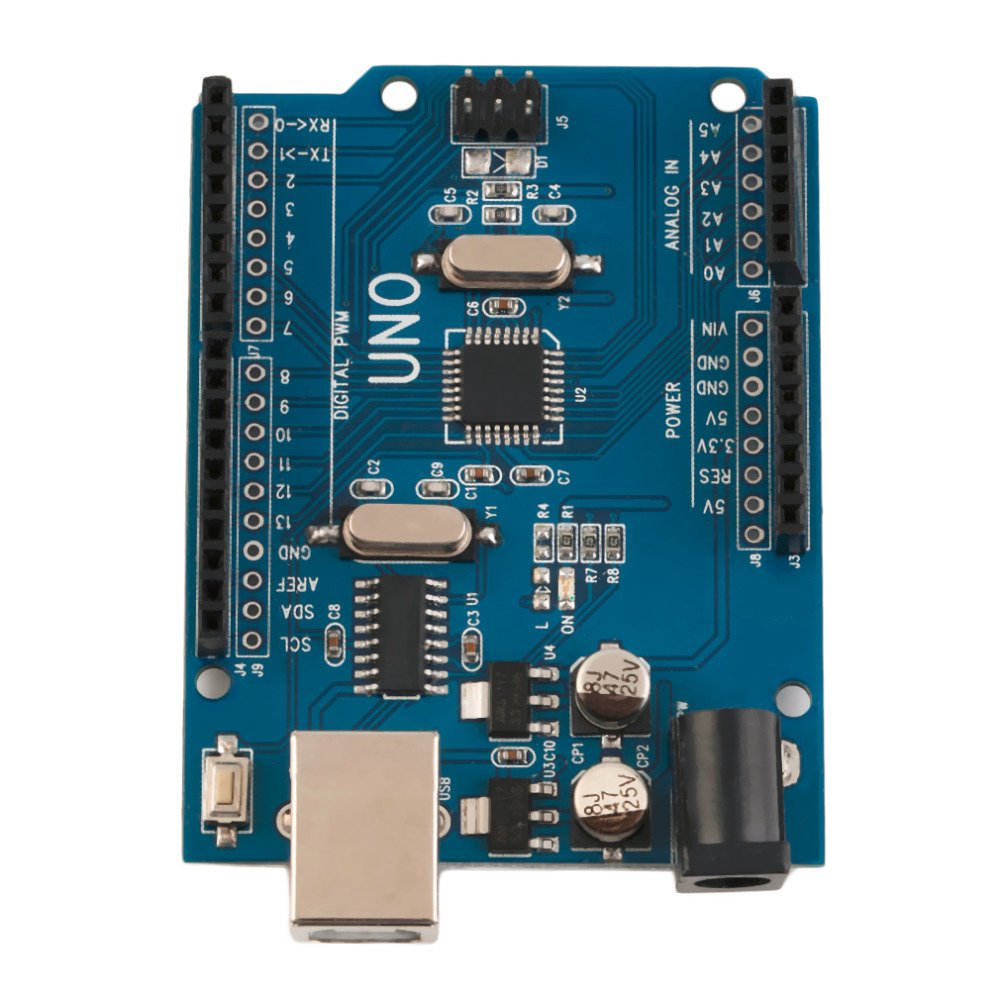

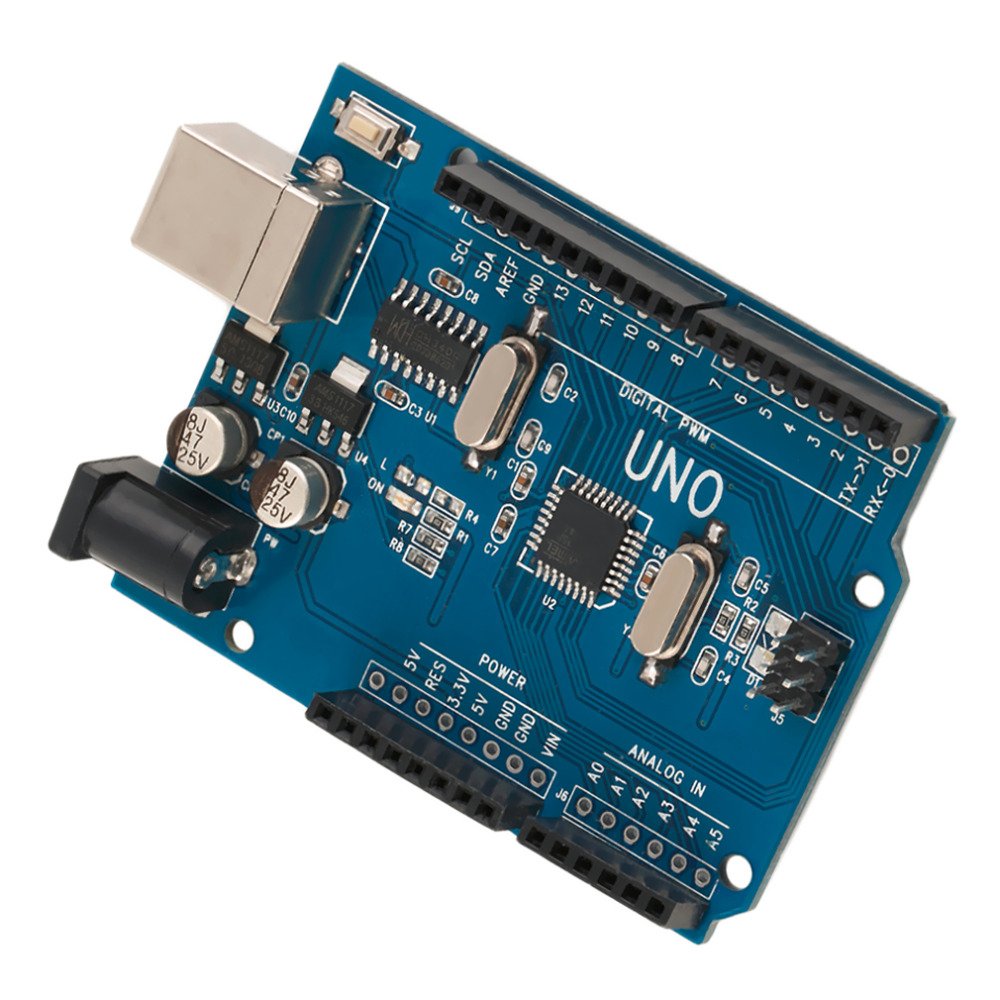

UNO R3 ATmega328P Development Board With Boot Loader For Arduino UNO Cheap!
Arduino UNO R3 Compatible (Clone) Board – ATmega328P & CH340
This device and this listing with words ‘Compatible’ and ‘Development’ in the listing names are clones based on open source Arduino Hardware.
It will do anything that an original Arduino UNO R3 will do. The original version which is made in Italy costs upwards of Rs. 1200.
Imported HIGH Quality!
UNO R3 ATmega328P Features:
- 100% Brand new and high quality!
- Atmel Atmega328 microprocessor controller
- Surface mounted components
- Support ISP downloads function
- Add two rows of the holes for the pins. So it can be connected with normal Dumond line.
- Add 3 rows of the holes for wiring.
- Change the in-line package of ARMEGA328P to flat package.
Technical Specs:
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega328P) of which 0.5 KB used by bootloader |
| SRAM | 2 KB (ATmega328P) |
| EEPROM | 1 KB (ATmega328P) |
| Clock Speed | 16 MHz |
| Length | 68.6 mm |
| Width | 53.4 mm |
| Weight | 25 g |
Software support:
Download Arduino IDE & drivers:
https://www.arduino.cc/en/Main/Software
https://www.arduino.cc/en/Guide/Windows
Specifications:
- Condition: brand new
- Quantity: 1pc
- USB Interface: CH340G
- Operating voltage: 5V
- 14 I/O Pins. 6 with PWM function
- Digital I/O terminals: 0 – 13.
- Analog I/O terminals : 0 – 5.
- Supports ISP and sketches download function.
- Input voltage: USB or external power supply 5 v ~ 9 v dc input.
- Output voltage: 5 V and 3.3 V dc
Package Content: 1 x UNO R3 Development Board
