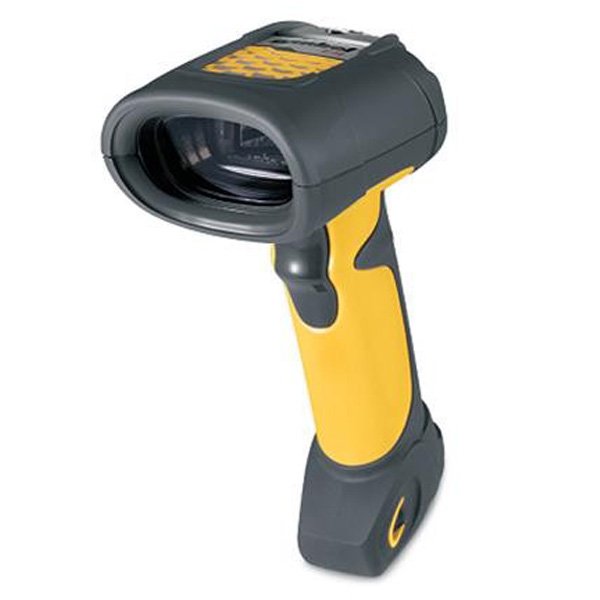

Motorola LS3408 Laser Scanner

Flexible working range: 5″ (13cm) to 45ft (14.6m)
Improves user productivity
Ergonomic, rugged industrial design withstands multiple 6.5ft drops (2m) to concrete: 2,500 3ft (1m) tumbles (5,000 hits)
Ensures maximum reliability with less down time due to accidental drops
IP65 sealing rating (electronic enclosure)
Protects against water and dust to ensure reliable performance in rough conditions

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Motorola LS3408 Laser Scanner

Scanning Characteristics
Min. Element Width	7 mil/0.191 mm
Print Contrast	Print Contrast: 25% minimum reflective difference
Scan Angle	Pitch:2 ± 65° from normal
	Skew (Yaw):3 ± 60° from normal
	Roll (Tilt):1 ± 10° from normal
Scan Element Frequency
Scan Pattern	Retrocollective
Scan Repetition	36 scans per second typical

Performance Characteristics
Interfaces Supported	RS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM 468X/469X, USB and Synapse
Light Source	650 nm visible laser diode

Data Capture Characteristics
Decoding Capability	UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants

Power Specifications
Power Requirements	4.5 – 14 VDC
Power Sources	Depending on host: • Host power • External power supply
Stand-by Current	50 mA

Environment Characteristics
Ambient Light Immunity	Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight; Indoor: 450 ft. candles/4,84 LUX; Outdoor: 4,000 ft. candles/43,040 LUX
Drop Specifications	Unit functions normally after repeated 6.5 ft./2 m drops to concrete
Electrostatic Discharge (ESD Protection )	Conforms to 20 kV air discharge and 8 kV of contact discharge
Environment Sealing	Sealed to IP65 specifications
Humidity	5% to 95% relative humidity, non-condensing
Operating Temperature	-22° to 122° F/-30° to 50° C
Storage Temperature	-40° to 158° F/-40° to 70° C

Physical Characteristics
Dimensions	7.34 in. H x 4.82 in. W x 2.93 in. D 18.65 cm H x 12.25 cm W x 7.43 cm D
Weight (w/o cable)	12.56 oz./356 g
Color	Twilight Black/Yellow

Options
Regulatory Approvals	Laser Safety: IEC825-1 Class 2
	Input Transient IEC 1000-4-(2,3,4,5,6,11) Protection:
	EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori
