| Scanning Characteristics |
| Depth Of Field |
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in |
| Print Contrast |
RATIO (MINIMUM) 15% |
| Read Rate |
(MAXIMUM) 325 reads/sec. |
| Reading Angle |
Pitch: 65°; Roll (Tilt): 35°; Skew (Yaw): 65° |
| Scan Resolution |
(MAXIMUM) 0.076 mm / 3 mils |
|
| Performance Characteristics |
| Indicators |
Datalogic ‘Green Spot’Good Read Feedback; Good Read LED |
| Interface |
RS-232 / USB / Keyboard Wedge / Wand Multi-Interfaces |
| Light Source |
Illumination: Dual LED Array 630 – 670 nm |
| Reading Indicators (Beeper Operation) |
Beeper (Adjustable Tone and Volume); |
|
| Data Capture Characteristics |
| Decoding Capability |
POSTAL CODES : China Post |
|
1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1DataBar™ linear codes. |
|
STACKED CODES :GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1DataBar Stacked Omnidirectional |
|
| Power Specifications |
| Current Consumption |
Operating (Typical): 245 mA @ 5 VDC; Standby/Idle (Typical):120 mA @ 5 VDC |
| Input Voltage |
4.75 – 5.25 VDC |
|
| Environment Characteristics |
| Ambient Light Levels |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 5.0 ft onto a concretesurface |
| Electrostatic Discharge (ESD Protection ) |
16 kV |
| Enclosure |
Disinfectant-Ready Enclosure Treated with Anti-MicrobialAdditives |
| Humidity |
(NON-CONDENSING) 0 – 90% |
| Operating Temperature |
TEMPERATURE Operating: 0 to 55 °C / 32 to 131 °F |
| Particulate and Water Sealing |
IP52 |
| Storage Temperature |
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
|
| Physical Characteristics |
| Dimensions |
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
| Weight |
169.0 g / 6.0 oz |

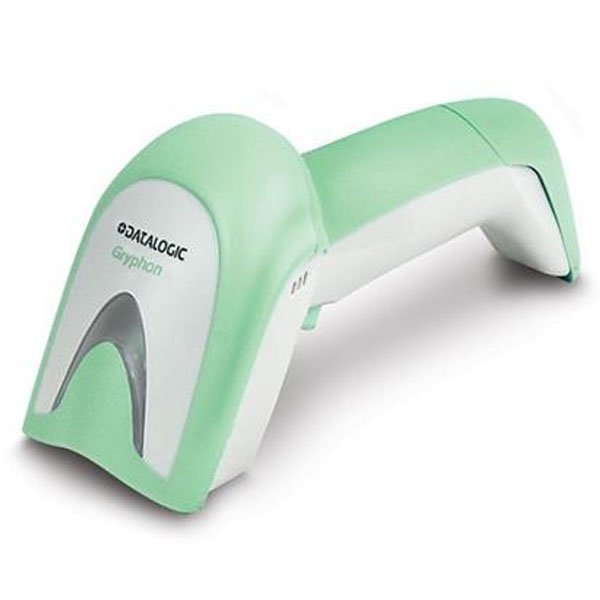

| Color |
Light Green/Light Grey (Rubber/Plastic) |
|
| Options |
| Agency Approvals |
The product meets necessary safety and regulatory approvalsfor its intended use.The Quick Reference Guide for this product can be referred tofor a complete list of certifications. |
| Safety Standards |
ENVIRONMENTAL COMPLIANCE:Complies to China RoHS; Complies to EU RoHSLED CLASSIFICATION : IEC 60825-1 Class 1 LED Product |
| User Options |
UTILITIES :DATALOGIC ALADDIN™ : Datalogic Aladdin configuration program is available fordownload at no charge.REMOTE HOST DOWNLOAD : Lowers service costs and improves operations: GD4100 |
