Orange Pi PC ubuntu Linux and android mini PC Beyond Raspberry Pi 2

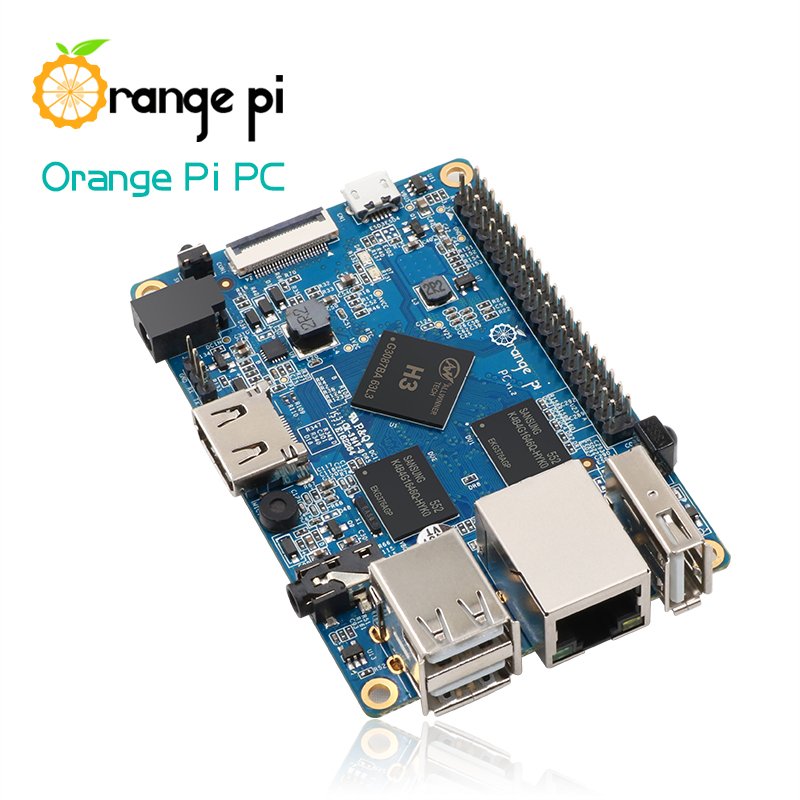

What’s Orange Pi PC?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC and has 1GB DDR3 SDRAM
What can I do with Orange Pi PC?
You can use it to build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi is open source
Who’ s it for?
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.
40 Pins Header, compatible with Raspberry Pi B+
Hardware specification |
||
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K | |
| GPU |
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
|
|
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot | |
| Onboard Network | 10/100 Ethernet RJ45 | |
| Video Input | A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps |
|
| Audio Input | MIC | |
| Video Outputs |
Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
|
| Audio Output | 3.5 mm Jack and HDMI | |
| Power Source |
DC input, USB OTG input don’t supply power
|
|
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG | |
| Buttons | Power button: | |
| Low-level peripherals | ||
| GPIO(1×3) pin | UART,ground. | |
| LED | Power led & Status led | |
| Key | IR Input, POWER | |
| Supported OS | Android Lubuntu, Debian, Rasberry Pi Image | |
Interface definition |
||
| Product size | 85mm × 55mm | |
| Weight | 38g | |
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited | ||
