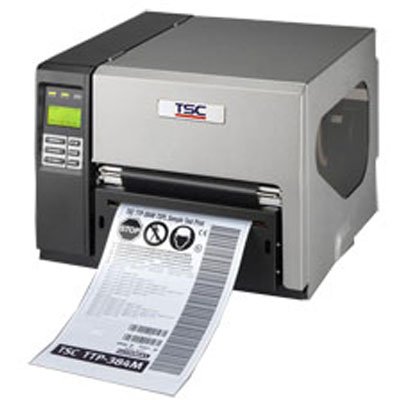

TSC TTP-384M Industrial Barcode Printer

Die-cast chassis, sheet metal structure with clear media view window
Can manage label widths up to 9.5” with a maximum print width up to 8.64” wide at 300 dpi high resolution
The 600-meter ribbon supply
Large LCD display with 6-button menus
8 MB Flash and 32 MB SDRAM memory
SD Flash memory expansion up to 4 GB

🌍 Worldwide Shipping Available

🛡 International Warranty Support

🔒 Secure Payment Options

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

TSC TTP-384M Industrial Barcode Printer

Printing Characteristics
Print Length	5,080 mm (200“)
Print Method	Thermal Transfer & Direct Thermal
Print Speed	102 mm (4”)/second
Print Width	219.5 mm (8.64“)
Printer Head	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Resolution	12 dots/mm (300 DPI)

Media Characteristics
Label Length	25.4 ~ 5,080 mm (1“ ~ 200“)
Media Core Diameter	76.2 mm (3“)
Media Sensor	Gap transmissive sensor (position adjustable)Black mark reflective sensor (position adjustable)Ribbon end sensor Head open senso
Media Thickness	0.06 ~ 0.254 mm (2.36 ~ 10 mil)
Media Type	Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound)
Media Width	101.6 ~ 241.3 mm (4“ ~ 9.5“)

Ribbon Characteristics
Ribbon Length	600 m long,
Ribbon Width	110 mm ~ 254 mm (4.3“ ~ 10“)
Core Inner Diameter	Max. 90 mm OD, 1“ core (ink coated outside)

Performance Characteristics
Interface	RS-232Centronics USB 2.0 PS/2 keyboardInternal Ethernet, 10/100 Mbps USB host, for scanner or PC keyboard (factory option)GPIO (factory option)Bluetooth (user option)External 802.11 b/g/n wireless (user option)
Memory	MB Flash memory32 MB SDRAMSD Flash memory card reader for Flash memory expansion, up to 4 GB
Processor/CPU Type	32-bit RISC CPU

Fonts / Graphics / Symbologies
Barcode Symbologies	1D:Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128,UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11
	2D:PDF-417, Maxicode, DataMatrix, QR code, Aztec
Character Sets	8 alpha-numeric bitmap fontsMonotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Enlargement & Rotation	0, 90, 180, 270 degree
Graphics	Graphic type, 128 x 64 pixel, with back light

Environment Characteristics
Factory Options	GPIO interfaceUSB host, for scanner or PC keyboard
Operation Environment	Operation: 5 ~ 40°C, 20 ~ 85% non-condensing
Storage Environment	Storage: -40 ~ 60°C, 5 ~ 90% non-condensing
User Options	Guillotine cutter (full cut) Bluetooth module (serial interface) 802.11 b/g/n wireless module (serial interface) KP-200 Plus keyboard display unitKU-007 Plus programmable smart keyboard

Physical Characteristics
Dimensions (W x L x H)	440 mm (W) x 336 mm (H) x 504 mm (D)17.32“ (W) x 13.23“ (H) x 19.84“ (D)
Power Source	Internal universal switching power supply Input: AC 90-264V, 5.5A, 47-63HzOutput: DC 24V, 14.58A, 350W
Weight	23.2 kg (51.15 lbs

Options
Accessories	Windows labeling software CD disk Quick start guide USB cablePower cordRibbon paper core
Regulatory Approvals	FCC Class A, CE Class A, UL, CUL, TÜV/Safety
