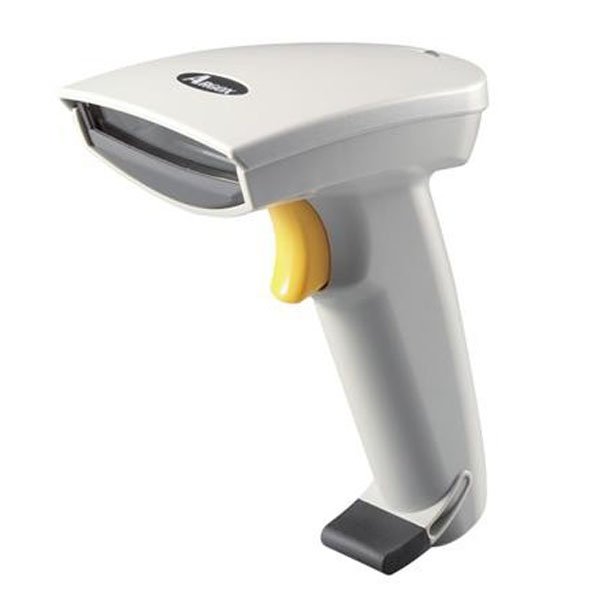

Argox AS-8250 Linear Imager Scanner
| Scanning Characteristics | |
| Depth of scan field | 0-250 mm |
| Print Contrast | 25% or more |
| Scan Angle | Front: 60° ,Rear: 60° ,Yaw: 75° |
| Scan Resolution | 0.1mm (4mils) – Code 39,PCS=90 %, on contact |
| Scan Speed | 200 scans/sec |
| Scanning Width | 120 mm |
| Performance Characteristics | |
| Indicators | Green LED |
| Light Source | 660 nm visible red LED |
| Optical System | 2048 pixel CCD (charge-coupled device) |
| Program Upgrade | Enabled by build-in flash memory |
| Programmable Characteristics | Code type selection, check digit selection Decoding option Transmitted character delay,Header selection, trailer selection, message suffix, good read beep tone and volume,scanner trigger selection Keyboard emulation type (intermessage delay, keyboard type andkeyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LEDcontrol, start/stop bits) |
| Programming Method | Manual (reading special barcode) DOScommand through RS-232, Windowsconfiguration program |
| Reading Indicators (Beeper Operation) | 7 tones or no beep |
| Data Capture Characteristics | |
| Decoding Capability | Autodiscriminates all standard onedimensionbarcodes; including GS1 databar |
| Power Specifications | |
| Current – operating | 255 mA @ 5 VDC |
| Current – sleep mode | 25 mA @ 5VDC |
| Current – standby | 120 mA @ 5 VDC |
| DC Transformers | Class 2; 5VDC @ 450 mA |
| Input Voltage | 5 VDC ± 0.25V |
| Power – operating | 1275 mW |
| Power – standby | 600 mW |
| Environment Characteristics | |
| Contaminants | Sealed to resist airborne particulatecontaminants (IP42) |
| Humidity | 5% to 90% relative humidity, non-condensing |
| Light Levels | Up to 60000 Lux |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Shock | 1.5m drop onto concrete |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Physical Characteristics | |
| Cable – K/B wedge | Straight 2.0 m |
| Cable – universal type | Straight 2.3 m |
| Case Material | ABS plastic + PC |
| Connector type | RJ-45 phone jack connector |
| Cushion material | Rubber |
| Dimensions | Length – 182 mm |
| Width-head – 74 mm | |
| Depth-head – 35 mm | |
| Depth-handle – 51mm | |
| Width-handle – 26 mm | |
| Weight | 160 g (cable not included) |
| Options | |
| EMC Standards | FC |
