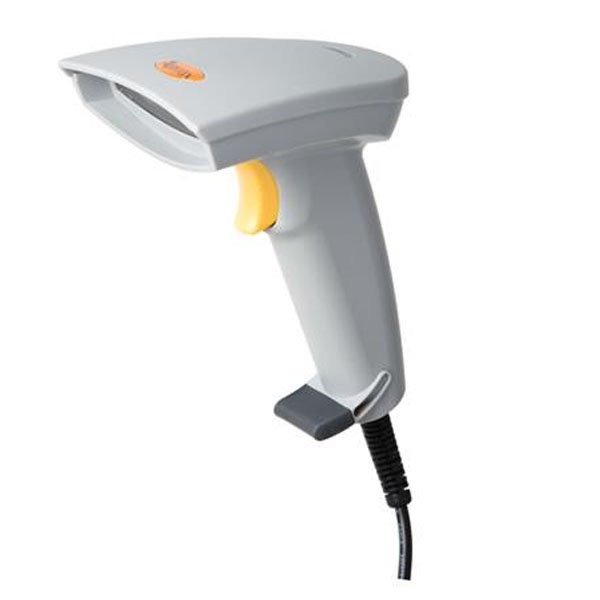

Argox AS-8120 Linear Imager Scanner

Light Weight, Ergonomic Design
General Purpose reader – a single device covering the broadest range of application
Durable – without any moving parts to wear out
100 scans per second and a working range from contact to 150mm on medium density barcodes

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Argox AS-8120 Linear Imager Scanner

Scanning Characteristics
Depth of scan field	150 mm(Code 39, PCS = 90%, 20mils)
Print Contrast	45% or more (30% programmable)
Scan Angle	Front: 60° ,Rear: 60° ,Yaw: 75°
Scan Resolution	0.1 mm (4mils) Code39, PCS = 90%, on contact
Scan Speed	100 scans/sec
Scanning Width	75 mm at contact

Performance Characteristics
Indicators	Blue LED
Interface	Cable – K/B wedge,RS-232,USB :Straight 2.0 m (attachable)
Light Source	660nm Visible Red LED
Optical System	2048 pixel CCD(Charge-coupled device)
Programmable Characteristics	Code type selection, check digit selection decoding option transmitted character delay,header selection, trailer selection, message suffix, good read beep tone and volume,scanner trigger selection keyboard emulation type (intermessage delay, keyboard type andkeyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LEDcontrol, start/stop bits)
Programming Method	Manual (Reading special barcode)DOS command through RS-232
Reading Indicators (Beeper Operation)	7 tones or no beep

Data Capture Characteristics
Decoding Capability	Auto discriminates all standard barcode;Other symbologies can be ordered optionally

Power Specifications
Current – operating	250 mA @ 5 VDC
Current – standby	60 mA @ 5 VDC
DC Transformers	Class 2; 5VDC @ 500 mA
Input Voltage	5 VDC ± 0.25V
Power – operating	1250mW
Power – standby	300 mW

Environment Characteristics
Ambient Light Levels	Up to 20000 Lux
Contaminants	Sealed to resist airbome particulate contaminants
Humidity	5% to 90% relative humidity, non-condensing
Operating Temperature	0°C to 45°C (32°F to 113°F)
Shock	1.5m drop onto concrete
Shock Resistance	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics
Case Material	ABS
Connector type	RJ-45 phone jack connector
Dimensions	Length – 182 mm
	Width-head – 90 mm
	Depth-head – 35 mm
	Width-handle – 26 mm
	Depth-handle – 49 mm
Weight	120 g (cable not included)
