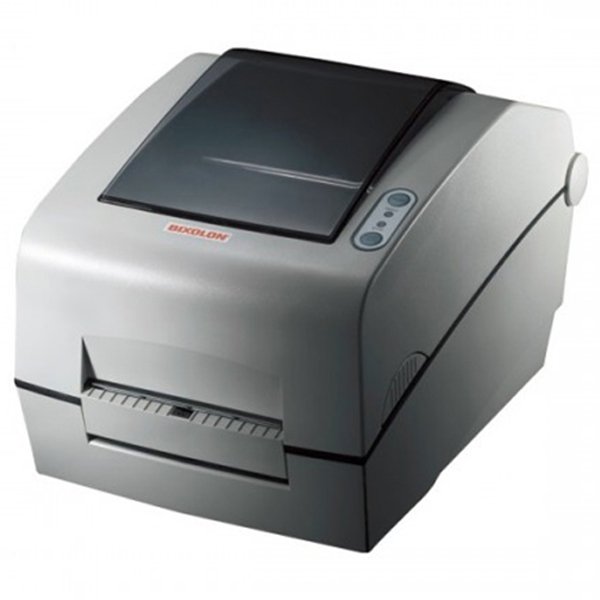

Bixolon SLP-TX400 Desktop Barcode Printer
| Printing Characteristics | |
| Print Length | 6 ~ 1,000mm |
| Print Method | Direct Thermal Printing Thermal Transfer Printing |
| Print Speed | (203DPI) : Max.178 mm/s, 7ips (300DPI) : Max.127 mm/s, 5ips |
| Print Width | Max.108 mm |
| Printer Language | SLCS, BPL-ZTM, BPL-ETM |
| Media Characteristics | |
| Media Roll Diameter | 25 ~ 116mm |
| Media Sensor | GAP, Black Mark, Cover Open |
| Media Thickness | 0.08 ~ 0.20 mm |
| Supply Method | Easy Paper Loading |
| Ribbon Characteristics | |
| Ribbon Length | 300m |
| Ribbon Type | Outside |
| Ribbon Width | 110mm |
| Core Inner Diameter | 25.4 mm |
| Performance Characteristics | |
| Interface | 1. Serial + Parallel + USB V2.0HS 2. Serial + Ethernet/WLAN + USB V2.0HS |
| Memory | FLASH : 128MB • RAM : 64MB DDR2 |
| Fonts / Graphics / Symbologies | |
| Character Sets | Extended Characters Page(128 × 23), Resident bitmap Fonts(10), True Type Font, Unicode |
| Barcode Font | 1D : Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, RSS-14 (limited, truncated, stacked), Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, Code 128 with subsets A/B/C, UCC/EAN-128, UPC-A with 2 or 5 digit extensions, UPC-A and UPC-E with 2 or 5 digit extensions, EAN-8 and EAN-13, Japanese Postnet, MSI-3, German Post Code • 2D : Codablock, Code49, DataMatrix, Maxicode, Micro PDF417, PDF417, QR Code, RSS/GS1 DataBar Family, Aztec |
| Environment Characteristics | |
| Factory Options | User/Factory |
| User Options | Peeler, Ethernet, Wireless LAN(USB dongle), Auto-Cutter, 300dpi, RTC(Real Time Clock), External paper supplier |
| Physical Characteristics | |
| Dimensions (W x L x H) | 214 x 310 x 195 mm (W x D x H) |
| Power Supply | VDC/A : 24V / 2.5A |
| Weight | 2.8 Kg |
