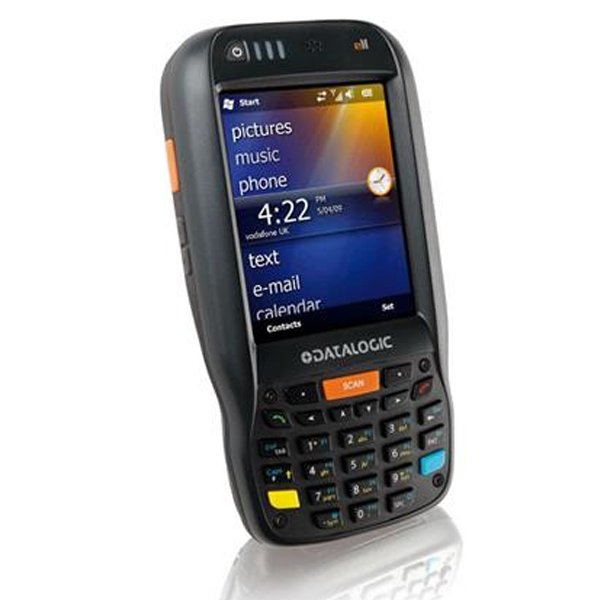

Datalogic ELF Hand-Held Terminal

Ergonomic, compact and robust
Windows Embedded Handheld 6.5 or CE 6.0
Assisted GPS (A-GPS) with Skyhook‘s Core Engine hybrid positioning system for location-based applications and directions (WEHH 6.5 only)
UMTS HSDPA mobile radio for voice and data communication (WEHH 6.5 only)
Summit embedded 802.11 a/b/g radio for enterprise-class mobile connectivity with CCX V4 certification

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datalogic ELF Hand-Held Terminal

Performance Characteristics
CPU/Processor	MICROPROCESSOR XScale™ PXA310 @ 624 MHzCOPROCESSOR ARM-7 32 bit 72 MHz
Interface	Electrical: integrated RS-232 up to 115.2 KbpsUSB:integrated micro USB connector, Host 1.1 and Client 2.0,also for supplying power
Memory	SYSTEM RAM MEMORY 256 MBSYSTEM FLASH MEMORY 256 MB (including Backup directory for userdata & program permanent storage)
Operating System	CE 6.0 or WEHH 6.5 with Mobile tools:Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile,One Note Mobile and Internet Explorer Mobile 6.0
Reading Indicator	Vibrator, LEDs and Green Spot

Communication Modules
Global Positioning System (GPS)	Assisted GPS (A-GPS) with Skyhook’s Core Enginehybrid positioning system
WLAN Radio	Summit IEEE 802.11 a/b/gFrequency range: Country dependent, typically2.4 – 5 GHz CCX v4 Security
WPAN Radio	Bluetooth® Wireless Technology IEEE 802.15 Class 2.0with EDR
WWAN Radio	UMTS HSDPA 850 1900 2100 – GSM/GPRS/EDGE 850900 1800 1900 MHz for voice and data communicationSIM socket under the battery

Data Capture Characteristics
Imager Characteristics	IMAGE FORMATS BMP, JPEG
	LED CLASSIFICATION IEC Class 1M
	SCANNING RATE 60 frames/sec maximum
	LASER CLASSIFICATION CDRH/IEC Class II
	RESOLUTION Wide VGA (752 H x 480 V pixels), 256 gray scale
	MINIMUM RESOLUTION Linear codes at 3 mils; 2D codes at 5 mils
	BAR CODES UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5,Code 39, Code 39 Full ASCII, Codabar, Code 128,EAN 128, Code 93, MSI, PDF417, Micro PDF,DataMatrix, QR, GS1 Databar, Aztec, Maxicode,POSTNET, PLANET, Japan Post, Australia Post,KIX Code, Royal Mail RM4SCC, USPS 4CB, UPU FICS
Laser Characteristics	SCANNING RATE 104 +/-12 scan/sec
	MINIMUM RESOLUTION 0.10 mm / 4 mils
	LASER CLASSIFICATION VLD – Class 2/II EN 60825-1/CDHR
	DEPTH OF FIELD 5 to 64 cm / 2 to 25 in, depending on bar code density
	BAR CODES GS1 DataBar™, EAN/UPC, Code 39, 2/5 Codes, Plessey,Codabar, Code 128, EAN128, MSI, Code 93, Code 11

Power Specifications
Power Supply	Removable battery pack with rechargeable Li-ionbatteries; 3.7 V 3000/5000 mAh (11.10/18.50 Watt hours)

Environment Characteristics
Drop Specification	Withstands drops from 1.5 m / 5 ft onto concrete
Environmental Sealing	IP64 standard for water and dust resistance
Operating Temperature	-10 to 50 ºC / 14 to 122 ºF
Real Time Clock	Time and date stamping under software control
Storage Temperature	-20 to 70 ºC / -4 to 158 ºF

Physical Characteristics
Camera	(WEHH 6.5 only)RESOLUTION : 3 megapixelILLUMINATION :User controllable flashLENS : Auto focus
Dimensions (W x H x D)	15.7 x 8.1x 4.2 cm / 6.18 x 3.18 x 1.65 in
Display	Reflective TFT daylight readable color display, allowingboth resolution 320 x 240 pixels (Windows CE Models)and 640 x 480 (WEHH Models), 8.9 cm / 3.5 in diagonal,65K colors, backlight, touch screen
Expansion Slot	Micro SD card slot compatible with SDHCcards, user-accessible
Keypad	27-key Numeric or 46-key QWERTY backlit keyboardstandard. Side scan keys, push to talk and volume setting
Weight	415.0 to 440.0 g / 14.6 to 15.5 oz, depending on model(includes battery
