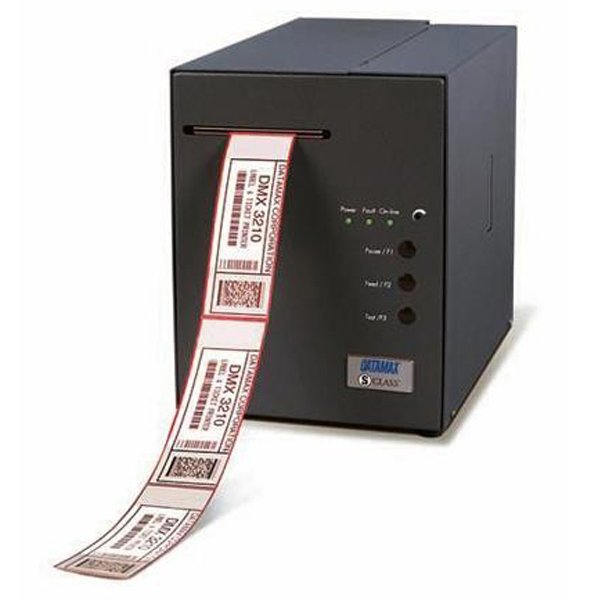

Datamax ST-3306 Industrial Barcode Printer

Thermal Printing Technology – The S-Class utilize direct thermal printing to provide the very best barcode printing reliability as possible.
Industrial Grade Design – The industrial grade design is simple and utilizes strong durable materials.
Heavy Duty Construction – The construction is made up of heavy duty steal cabinets and framework.
Reliability Proven Thermal Printing Technology – Every component of the S-Class is designed to provide the very best in class reliability.

🌍 Worldwide Shipping Available

🛡 International Warranty Support

🔒 Secure Payment Options

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datamax ST-3306 Industrial Barcode Printer

Printing Characteristics
Print Length	.25″ – 99″ (6mm – 2475mm)
Print Method	Direct thermal
Print Speed	6 IPS
Print Width	3.2″ (81.3mm)
Resolution	300 DPI

Media Characteristics
Media Sensor	Adjustable reflective sensor for media withblack stripe sensing (Automatic feed and topof ticket presentation)
Media Thickness	0.0025″ – 0.010″ (.06mm – .254mm)
Media Type	ST-Class: Roll or Fan-fold tickets or tags– SV-Class: Fan-fold tickets or tags
Media Width	1.9″ – 3.25″ (48.26mm – 82.55mm)

Performance Characteristics
Interface	USB, Centronics® IEEE-1284 Parallel port,RS232 at 1200 to 38,400 BPS
Memory	4MB DRAM; 2MB Flash

Fonts / Graphics / Symbologies
Barcode Symbologies	Code 3 of 9, UPC-A, UPC-E, Interleaved2 of 5, Code 128, EAN-8, EAN-13, HIBC,Codabar, Plessey, UPC 2 and 5 digitaddendums, Code 93, Postnet, UCC/EANCode 128, Telepen, UPS MaxiCode, FIM,PDF417, USD-8, Datamatrix, QR Code,Aztec, TLC 39, Micro PDF417
Character Sets	Modified IBM® Code Page 850; includescharacters for English and most European,Scandinavian and Spanish speakingcountries. Scalable fonts can be used withover 50 resident character sets
Enlargement & Rotation	All fonts expandable vertically and horizontallyup to 8x; fonts and graphics can be printed infour directions: 0°, 90°, 180° and 270°
Graphics	PCX, .BMP, and .IMG files

Software
SDK	Used for creating label formats using virtuallyany Windows®-based program.

Environment Characteristics
Operation Environment	Operating temperature:40°F to 95°F (4°C to 35°C)
User Options	4MB flash memory expansionILPC fonts for international useTop of ticket sensor ST-Class:Cutter and trayMedia roll hangerSV-Class:Cutter with ticket present

Physical Characteristics
Dimensions (W x L x H)	10″ H x 8″ W x 14″ D(254mm H x 203mm W x 356mm D)
Power Source	Auto-sensing 90 – 132 or 180 – 264 VAC @47-63 Hz; specify appropriate power cord whenordering
Weight	19 lbs. (8.6 kg)
