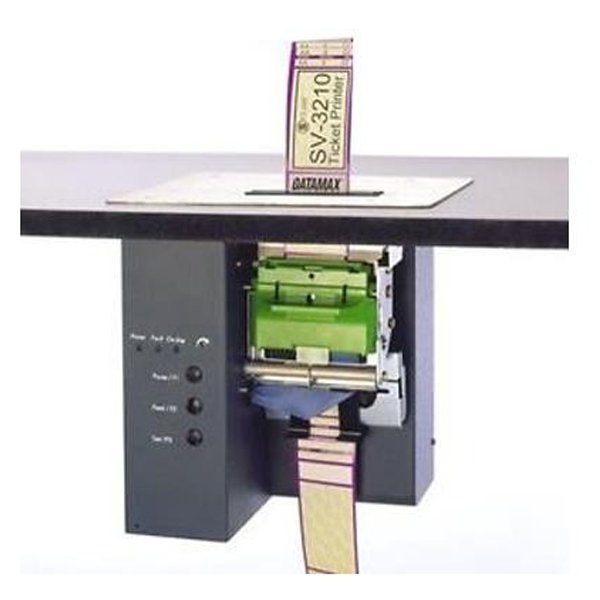

Datamax SV-3210 Industrial Barcode Printer

Thermal Printing Technology – The S-Class utilize direct thermal printing to provide the very best barcode printing reliability as possible.
Industrial Grade Design – The industrial grade design is simple and utilizes strong durable materials.
Heavy Duty Construction – The construction is made up of heavy duty steal cabinets and framework.
Reliability Proven Thermal Printing Technology – Every component of the S-Class is designed to provide the very best in class reliability.

🌍 Worldwide Shipping Available

🛡 International Warranty Support

🔒 Secure Payment Options

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datamax SV-3210 Industrial Barcode Printer

Printing Characteristics
Print Length	.25″ – 99″ (6mm – 2475mm)
Print Method	Direct thermal
Print Speed	10 IPS
Print Width	3.15″ (80mm)
Resolution	203 DPI

Media Characteristics
Media Sensor	Adjustable reflective sensor for media withblack stripe sensing (Automatic feed and topof ticket presentation)
Media Thickness	0.0025″ – 0.010″ (.06mm – .254mm)
Media Type	ST-Class: Roll or Fan-fold tickets or tags– SV-Class: Fan-fold tickets or tags
Media Width	1.9″ – 3.25″ (48.26mm – 82.55mm)

Performance Characteristics
Interface	USB, Centronics® IEEE-1284 Parallel port,RS232 at 1200 to 38,400 BPS
Memory	4MB DRAM; 2MB Flash

Fonts / Graphics / Symbologies
Barcode Symbologies	Code 3 of 9, UPC-A, UPC-E, Interleaved2 of 5, Code 128, EAN-8, EAN-13, HIBC,Codabar, Plessey, UPC 2 and 5 digitaddendums, Code 93, Postnet, UCC/EANCode 128, Telepen, UPS MaxiCode, FIM,PDF417, USD-8, Datamatrix, QR Code,Aztec, TLC 39, Micro PDF417
Character Sets	Modified IBM® Code Page 850; includescharacters for English and most European,Scandinavian and Spanish speakingcountries. Scalable fonts can be used withover 50 resident character sets
Enlargement & Rotation	All fonts expandable vertically and horizontallyup to 8x; fonts and graphics can be printed infour directions: 0°, 90°, 180° and 270°
Graphics	PCX, .BMP, and .IMG files

Software
SDK	Used for creating label formats using virtuallyany Windows®-based program.

Environment Characteristics
Operation Environment	Operating temperature:40°F to 95°F (4°C to 35°C)
User Options	4MB flash memory expansionILPC fonts for international useTop of ticket sensor ST-Class:Cutter and trayMedia roll hangerSV-Class:Cutter with ticket present

Physical Characteristics
Dimensions (W x L x H)	10″ H x 8″ W x 14″ D(254mm H x 203mm W x 356mm D)
Power Source	Auto-sensing 90 – 132 or 180 – 264 VAC @47-63 Hz; specify appropriate power cord whenordering
Weight	18.8 lbs. (8.46 kg)
