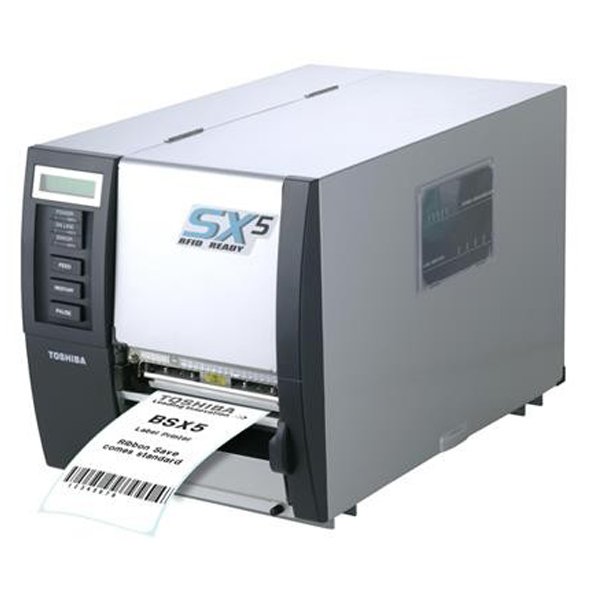

Toshiba B-SX5 Industrial Barcode Printer
| Printing Characteristics | |
| Print Head | Edge type |
| Print Length | Maximum 1,498 mm |
| Print Method | Thermal Transfer / direct thermal |
| Print Speed | up to 203.2 mm/sec (8 ips) |
| Print Width | Maximum 104 mm |
| Resolution | 12.05 dots/mm (306 dpi) |
| Performance Characteristics | |
| Interface | 2 serial ports, Bi-directional parallel port, Expansion I/O*,PCMCIA l/F**, 10/100 Internal LAN l/F**, USB** |
| Fonts / Graphics / Symbologies | |
| Barcode Symbologies | 1D:UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KlX-code, RSS14 |
| 2D:Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417, CP Code | |
| Character Sets | Bitmap font (21 fonts), Outline font (7 fonts), Writable characters (132 fonts), Optional TrueType fonts (20 types)** |
| Environment Characteristics | |
| User Options | Swing cutter module, rotary cutter module, strip module & rewinder***, USB Interface, built-in LAN board, Expansion I/O***, 2-slot-PCMCIA l/F board, RFID kit |
| Physical Characteristics | |
| Dimensions (W x L x H) | 291 mm (W) x 460 mm (D) x 308 mm (H) |
| Weight | 19 kg (without media and ribbon) |
