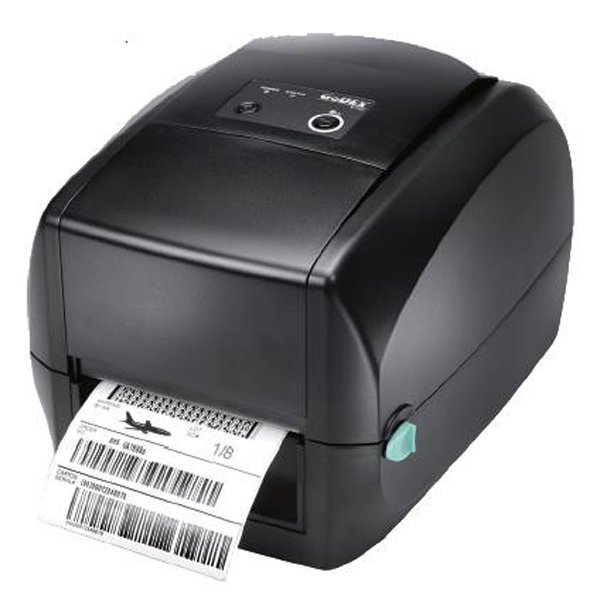

Godex RT730 Desktop Barcode Printer
| Printing Characteristics | |
| Print Length | Min. 0.16” (4 mm)**; Max. 30″ (762 mm) |
| Print Method | Thermal Transfer / Direct Thermal |
| Print Speed | 4 IPS(102 mm/s] |
| Print Width | 4.16″ (105.7 mm) |
| Printer Head | EZPL, GEPL, GZPL auto switch |
| Resolution | 300 dpi (12 dots/mm) |
| Media Characteristics | |
| Media Core Diameter | 1″ (25.4 mm), 1.5″ (38.1 mm) |
| Media Roll Diameter | Max. 5” (127 mm) |
| Media Sensor | Adjustable reflective sensor (full range) Fixed transmissive sensor, central aligned |
| Media Thickness | Min. 0.003″ (0.06 mm) – Max. 0.01″ (0.2 mm) |
| Media Type | Continuous form, gap labels, black mark sensing and punched hole; label length set by auto sensing or programming |
| Media Width | Min. 1″ (25.4 mm) – Max. 4.64″ (118 mm) |
| Ribbon Characteristics | |
| Ribbon Length | 981′ (300 m) |
| Ribbon Roll Diameter | Max. 2.67″ (68 mm) |
| Ribbon Type | Wax, wax / resin, resin |
| Ribbon Width | Min. 1.18″ (30 mm) – Max. 4.33″ (110 mm) |
| Core Inner Diameter | 1″ (25.4 mm) |
| Performance Characteristics | |
| Interface | USB 2.0 USB 2.0 USB 2.0 USB 2.0 Serial port: RS-232 (DB-9) Serial port: RS-232(DB-9) Serial port: RS-232 (DB-9) Serial port: RS-232(DB-9) Ethernet 10/100 Mbps Parallel port Ethernet 10/100 Mbps Parallel port |
| Memory | 8 MB Flash (4 MB for user storage)16 MB SDRAM |
| Operation Panel | Two dual color LEDs (Ready 8. Status) Calibration button Control key: FEED Power on / off button |
| Processor | 32 bit RISC CPU |
