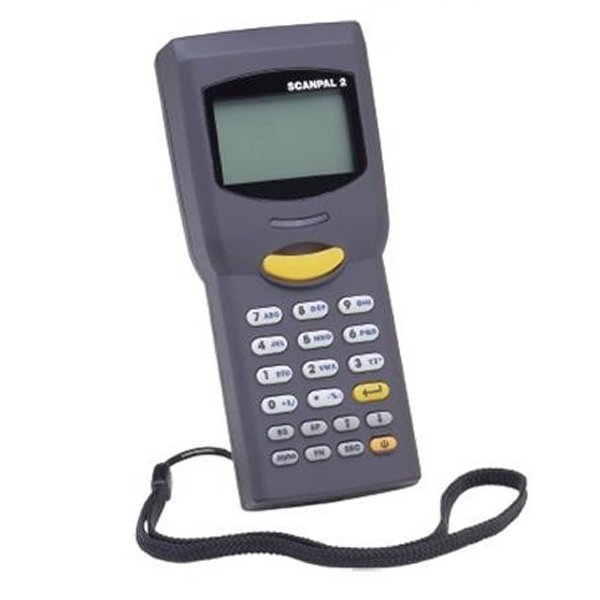

Honeywell ScanPal2 Hand-Held Terminal
| Performance Characteristics | |
| CPU/Processor | 16-bit CMOS, low power consumption |
| I/O Ports | RS232, IrDA or high speed IR, Keyboard Wedge |
| Memory | Program memory: 1 MB flash ROMData memory: 1 MB SRAM |
| Data Capture Characteristics | |
| Decode Capabilities | Reads standard 1D symbologies |
| Imager/Scanner | Laser Scanner: Visible Laser Diode 670 nm ± 15 nm; CCD Scanner: LED 610 nm – 623 nm |
| Power Specifications | |
| Backup Battery | Backup: 3V, 7 mAh, rechargeable lithium battery |
| Extended Battery | optional Ni-MH rechargeable battery |
| Standard Battery | Main: two “AAA” batteries; |
| Environment Characteristics | |
| Development Environment | Windows-based Application Generator; optional C & BASIC compilers |
| Drop Specification | Withstands multiple 4´ (1.2m) drops |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 5% to 95% relative humidity, non-condensing |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Physical Characteristics | |
| Audio | Programmable buzzer 1 KHz – 4 KHz |
| Dimensions (W x H x D) | 145 mm x 63 mm x 34 mm (5.7? x 2.5? x 1.3?) |
| Display | LCD – 128 x 64 pixels, back-lit |
| Storage Expansion | 21 rubber keys; alpha/numeric, function, scanner |
| Weight | 6.3 oz (180g) including batteries |
