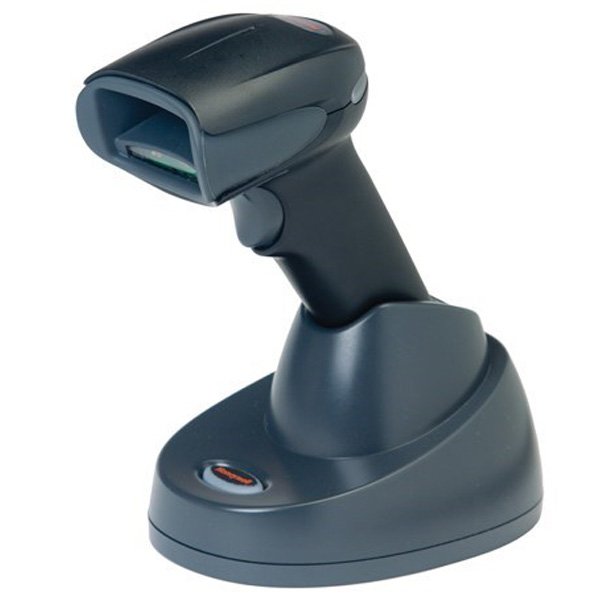

Honeywell Xenon 1902 Area Imager Scanner

Wireless Connectivity: Bluetooth Class 2, v2.1 radio enables movement up to 33 feet (10m) from base, reduces interference with other wireless systems, and lowers total cost of ownership by allowing up to seven imagers to communicate to a single base
Long-Lasting Lithium-Ion Battery: Powers up to 50,000 scans per full charge, ensuring maximum uptime
Flexible Power Management: Allows user to limit radio power output of scanner, minimizing the likelihood of interference with other devices

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Honeywell Xenon 1902 Area Imager Scanner

Scanning Characteristics
Motion Tolerance	Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Print Contrast	20% minimum reflectance difference
Scan Angle	Pitch, Skew 45°, 65°
	(SR): Horizontal: 42.4°; Vertical: 33°
	(HD): Horizontal: 41.4°; Vertical: 32.2°
	(ER): Horizontal: 31.6°; Vertical: 24.4°
Scan Pattern	Area Image (838 x 640 pixel array)

Performance Characteristics
Host System Interfaces	Charger/Communication Base:USB, Keyboard Wedge, RS232, IBM 46xx (RS485)

Communication Modules
Data Rate (Transmission Rate)	Up to 1 Mbit/s
Radio/Range	2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 10 m (33’) line of sight

Data Capture Characteristics
Decoding Capability	Decode Capabilities Reads standard 1D, PDF, 2D, Postal and OCR symbologies

Power Specifications
Battery Capacity	Number of Scans Up to 50,000 scans per chargeExpected Hours of Operation 14 hours
Battery Charging time	Expected Charge Time 4.5 hours
Battery Type	1800 mAh Li-ion minimum
Non-Charging Power	Charger/Communication Base:0.5 W (0.1A @ 5 V)
Operating Power(Charging)	Charger/Communication Base:5 W (1A @ 5 V)

Environment Characteristics
Drop Resistance	Scanner:Designed to withstand 50 1.8 m (6´) drops to concrete
	Charger/Communication Base:Designed to withstand 50 1 m (3.3´) drops to concrete
Environmental Sealing	Scanner:IP41
	Charger/Communication Base:IP41
Humidity	Scanner:0 to 95% relative humidity
	Charger/Communication Base:non-condensing 0 to 95% relative humidity, non-condensing
Light Levels	Scanner:0 to 100,000 lux (9,290 foot-candles)
Operating Temperature	Scanner:0°C to 50°C (32°F to 122°F)
	Charger/Communication Base:Charging: 5°C to 40°C (41°F to 104°F)Non-Charging: 0°C to 50°C (32°F to 122°F)
Storage Temperature	Scanner:-40°C to 70°C (-40°F to 158°F)
	Charger/Communication Base:-40°C to 70°C (-40°F to 158°F)

Physical Characteristics
Dimensions	Scanner:104 mm x 71 mm x 160 mm (4.1? x 2.8? x 6.3?)
	Charger/Communication Base:132 mm x 102 mm x 81 mm (5.2? x 4? x 3.2?)
Weight	Scanner:214 g (7.5 oz)
	Charger/Communication Base:179 g (6.3 oz)
