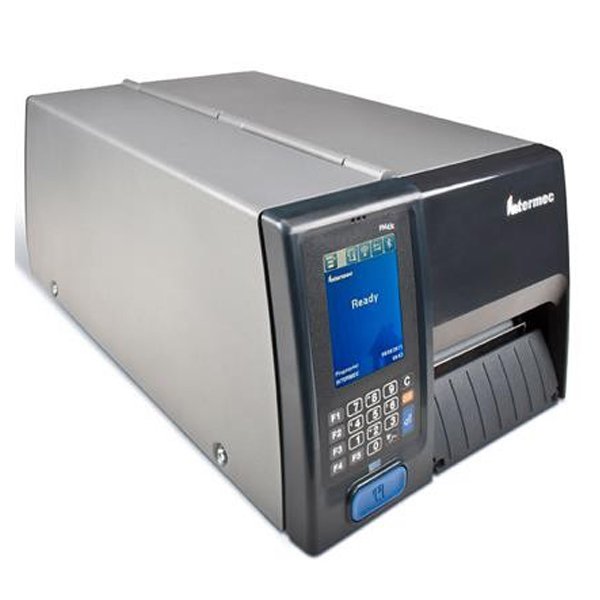

Intermec PM43 Industrial Barcode Printer

Large, color, multilingual, tamper-proof touch screen, or icon user interface
“No-touch” configuration capabilities
The only CCX- and WiFi-certified fixed printer with standard IPv6 implementation
Precision Print, for consistent bar-code printing with pinpoint accuracy
Multilingual webpage loaded on every printer ensures easy device monitoring

🌍 Worldwide Shipping Available

🛡 International Warranty Support

🔒 Secure Payment Options

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Intermec PM43 Industrial Barcode Printer

Printing Characteristics
Print Length	Max. Length: depending on with 203 dpi –406 dpi: (1.2 m) 48 in to (4.8 m) 191 in
Print Method	Industrial Mid Range, Direct Thermal andThermal Transfer label, ticket and tagprinter. Also available with RFID.
Print Speed	100 – 300 mm/s (4 – 12 ips) variable (203/300 dpi)100 – 250 mm/s (4 – 10 ips) variable (406 dpi)
Print Width	Max. Width with 203dpi: 108 mm (4.25 in)Max. Width with 300 dpi: 106 mm (4.17 in)Max. Width with 406 dpi: 104 mm (4.09 in)
Resolution	8 dots/mm (203 dpi)11.8 dots/mm (300 dpi)16 dots/mm (406 dpi)

Media Characteristics
Media Core Diameter	38-76 mm (1.5-3 in)
Media Roll Diameter	212.75 mm (8.375 in)
Media Sensor	Gap, notch, black mark, continuous
Media Thickness	Thickness: 3 to 10.4 mil
Media Type	Labels and Tags, Linerless and Linered media
Media Width	Max/Min Width: 114.3 /19.05 mm (4.5 /0.75 in)

Ribbon Characteristics
Ribbon Type	Wax, mid-range, resin
Ribbon Width	80 mm (3.15 in), approx. 450m
Core Inner Diameter	Core ID: 25.4 mm (1 in)

Performance Characteristics
Interface	Color touch User InterfaceIcon User InterfaceColor Touch interface and Web Page supportEnglish, Russian, German, French, Portuguese,Spanish, Italian, Korean, Simplifiedand Traditional Chinese
Memory	Standard: 128MB Flash memory, 128MB SDRAM,Multi-GB USB memory device (FAT16/FAT32USB drivers supported)

Fonts / Graphics / Symbologies
Barcode Symbologies	All major 1D and 2D symbologies are supported
Character Size	Monotype font engineNon-Latin fonts available through WTLE
Graphics	Supports PCX, PNG, GIF and BMP file formats.Other formats supported with Label Generation Tools

Software
Driver / Utility	InterDriver™ Windows printer driver Intermec label design and print packagePrintSet for printer configuration
SDK	IPLFingerprint/Direct ProtocolZSim (ZPL)DSim (DPL)Web Page configuration interfaceXML enabled for SAP® AII and Oracle® WMS

Environment Characteristics
Humidity	20 to 80% non-condensing
Operation Environment	+5°C to +40°C (+41°F to +104°F)
Storage Environment	-20°C to +70°C (-4°F to +152°F)
User Options	Parallel IEEE 1284Industrial Interface (8 digital in/out, 4 analogrelays, 1 RS232/422/485 port)Dual Serial ports RS-232, RS-422, RS-485 and20mA Current Loop Dual USB Host/Boot

Physical Characteristics
Dimensions (W x L x H)	PM43: LxHxW: 483.54 x 294.61 x 284.2 mm(19.04 x11.6 x 11.19 in)
Power Source	AC Voltage: 100 to 240 VAC, 45 to 65HzPFC Regulation: IEC320/C14Power Consumption: Standby 9W; Peak 300W
Weight	15.82 kg (34.88 lbs.)

Options
Accessories	RFID UHF, integral self-strip unit with liner takeup,Label Taken Sensor (LTS), Full Batch Label/LinerRewinder, parallel interface board, additional serialinterface boards, industrial interface boards, realtime clock, media supply hub, Collapsible Ribbon corecutter, Media low sensor, Linerless
