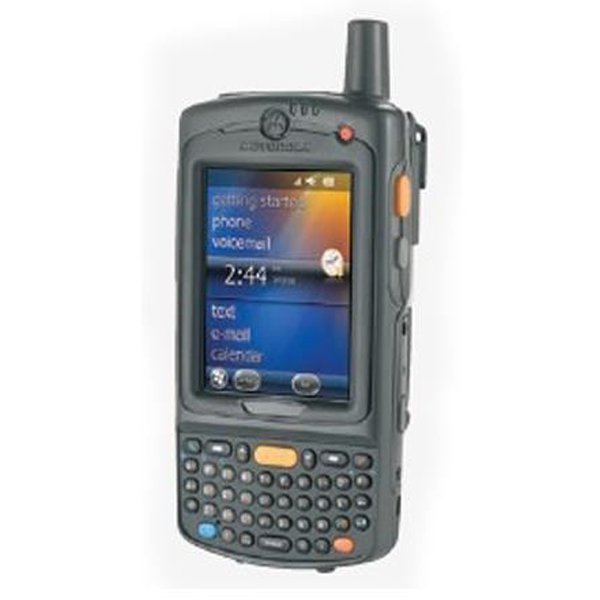

Motorola MC75A Hand-Held Terminal

Performance Characteristics
Communication Interface	Ethernet (via cradle); Full-speed USB,host (USB 1.1) or client (USB 2.0)
CPU/Processor	PXA320 @ 806 MHz processor
Interface	RS-232, USB 1.1/IrDA: Infra-red port for connection to printers andother devices
Memory	256MB RAM; 1GB Flash
Motorola Interactive Sensor Technology	Motion-sensor: 3-axis accelerometer that enables motion-sensingapplications for dynamic screen orientation, power management andfree-fall detect
Notification	Vibrator and LED
Operating System	Microsoft® Windows Embedded Handheld

Communication Modules
GPS	Integrated, Autonomous and Assisted-GPS(A-GPS) through SUPL; SiRFstarIII GSC3f/LP chipset
Voice Communication	Integrated Voice-over-IP ready (P2P, PBX,PTT), Wi-Fi™-certified, IEEE 802.11a/b/gdirect sequence wireless LAN
WLAN Antennas	Internal for LAN, External for WAN
WLAN Radio	Tri-mode IEEE ® 802.11a/b/gData Rates Supported : 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 MbpsOperating Channels : Chan 8-165 (5040 – 5825 MHz)Chan 1-13 (2412-2472 MHz)Chan 14 (2484 MHz) Japan onlyActual operating channels/frequencies dependon regulatory rules and certification agencySpreading Technique :Direct Sequence Spread Spectrum (DSSS)and Orthogonal Frequency DivisionMultiplexing (OFDM)
WLAN Security	WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS(MS-CHAP), TTLS (MS-CHAP v2), TTLS(CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS,PEAP (MS-CHAP v2), AES, LEAP, CCXv4certified; FIPS 140-2 certified
WPAN Radio	Bluetooth Class II , v2.1 with Enhanced Data Rate (EDR)integrated antenna
WWAN Radio	GSM: HSDPA; CDMA: EVDO Rev A

Data Capture Characteristics
1D Laser Scanner (SE950)	Range on 100% UPCA 24 in./60 cmResolution : 4 Mil minimum element width
	Scan Angle 47° ± 3° default; 35° ± 3° reduced
	Scan Rate 104 (± 12) scans/sec (bi-directional)
	Roll ± 35° from verticalPitch Angle ± 65° from normalSkew Tolerance ± 50° from normal
	Ambient Light Immunity :Tolerant to typical artificial indoor andnatural outdoor (direct sunlight) lightingconditions. Fluorescent, Incandescent,Mercury Vapor, Sodium Vapor, LED: 450Ft Candles (4,844 Lux) Sunlight: 8000 FtCandles (86,111 Lux)Note: LED lighting with high AC ripplecontent can impact scanning performance.
2D Imager Engine (SE4500-SR)	Focal Distance : From center of exit window: SR – 7.5 in./19 cm
	Roll Tolerance 360°
	Skew Tolerance ± 60°
	Pitch Tolerance ± 60°
	Sensor Resolution : 752 x 480 pixels
	Aiming LED (VLD) : 655 ± 10 nm Laser
	Field of View Horizontal: 40°; Vertical: 25°
	Illumination Element (LED): 625 ± 5 nm LEDs (2x)
	Ambient Light Immunity : 9,000 ft. candles/96,900 lux
2D Imager Engine: SE4500-DL	Roll Tolerance 360°
	Skew Tolerance ± 60°
	Pitch Tolerance ± 60°
	Aiming LED (VLD) 655 ± 10 nm Laser
	Sensor Resolution : 752 x 480 pixels
	Field of View Horizontal: 33°; Vertical: 25°
	Illumination Element (LED) 625 ± 5 nm LEDs (2x)
	Ambient LightImmunity:9,000 ft. candles/96,900 lux
	Focal Distance : From center of exit window: SR – 5 in./13 cm
Data Capture Specifications	Five ConfigurationOptionsStandard model available in fourconfigurations: Options: 1D laser scanner;2D imager; 1D laser scanner and camera;2D imager and cameraHealthcare model: (MC75A0-HC) configuredwith 2D imager, 3.2 MP camera, QWER TYkeypad and WLAN/WPAN (no WWAN)
