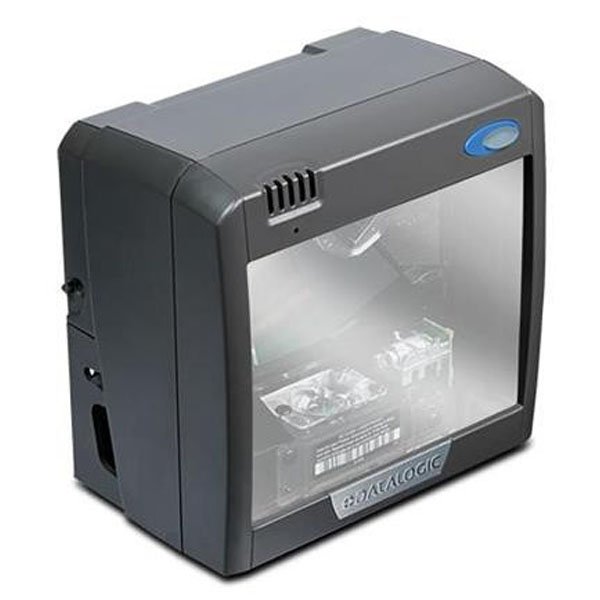

Datalogic MAGELLAN 2200VS Laser Scanner
| Scanning Characteristics | |
| Depth Of Field | Read Height 15.2 cm / 6.0 in |
| Scan Rate & Motor Speed | Scan Lines 20Motor Speed 6,000 rpm |
| Performance Characteristics | |
| Interface | IBM 46xx; Keyboard Wedge; OEM (IBM) USB; RS-232; USBAuxiliary Ports : Powered RS-232 |
| Reading Indicators (Beeper Operation) | Adjustable Tone and Volume |
| Data Capture Characteristics | |
| Decoding Capability | 1D / Linear Codes : Autodiscriminates all standard 1D codes including GS1Databar™ linear codes. |
| Stacked Codes:GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;GS1 DataBar Stacked Omnidirectional | |
| Power Specifications | |
| AC Power Requirements | Power Consumption: Operating (Maximum): 9.6 WattsAC Power Requirements: AC Input: 90-265 VAC, 47-63 HzOperating (Nominal): 4.0 WattsSleep Mode 2.5 Watts |
| Environment Characteristics | |
| Electrostatic Discharge (ESD Protection ) | 25 kV |
| Humidity | Humidity (Non-Condensing) 5 – 95% |
| Operating Temperature | Temperature Operating: 10 to 40 °C / 50 to 104 °F |
| Optional Features | EAS Features:Checkpoint Systems: Integrated EAS hardware will work withCounterpoint IX and Evolve D11 modelsSensormatic: Good Read AcknowledgementValue Added Features:Diagnostic Reporting; Productivity Index Reporting™ (PIR) |
| Storage Temperature | Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Physical Characteristics | |
| Dimensions | 15.2 x 15.2 x 9.7 cm / 6.0 x 6.0 x 3.8 in |
| Weight | 1.1 kg / 2.5 lb |
| Options | |
| Agency Approvals | Agency Approvals The product meets necessary safety and regulatory approvalsfor its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Safety Standards | Environmental Compliance : Complies to EU RoHSLaser Classification :Caution Laser Radiation – Do not stare into beam; CDRH ClassIIa; EN 60825-1 Class 1 |
| User Options | Utilities:OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.OPOS Utilities are available for download at no charge. |
