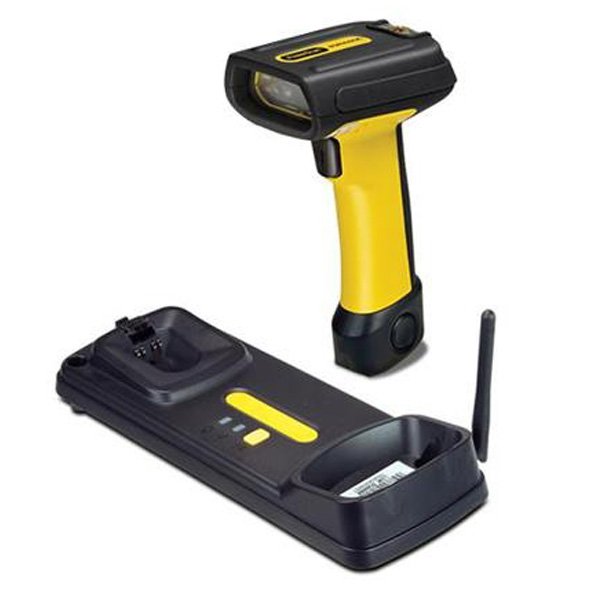

Datalogic POWERSCAN PBT7100 Linear Imager Scanner

Fastest speed-to-read – 390 scans/second
Datalogic ‘Green Spot’ and loud beeper for good read feedback
Bluetooth Wireless Technology with up to 100 m / 328 ft range
Connectivity through the Base Station or directly to other Bluetooth devices
Water and particulate sealing rating: IP65

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datalogic POWERSCAN PBT7100 Linear Imager Scanner

Scanning Characteristics
Depth Of Field	5 mils: 1.5 to 14.0 cm / 0.6 to 5.5 inReflective – 100 mils: 13.0 to 530.0 cm / 5.1 to 208.7 in
Print Contrast	Ratio (Minimum) 15%
Read Rate	(Maximum) 390 reads/sec.
Reading Angle	Pitch: +/- 65°; Roll (Tilt): +/- 30°; Skew (Yaw): +/- 65°
Scan Resolution	(Maximum) 0.076 mm / 3 mils

Performance Characteristics
Illumination	LED Array 630 – 670 nm
Interface	RS-232 / IBM 46XX / USB Multi-InterfaceRS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Light Source	Aiming: 630 – 680 nm VLD
Reading Indicators (Beeper Operation)	(Adjustable Tone and Volume); Datalogic ‘Green Spot’Good Read Feedback; Good Read LED

Communication Modules
Cordless Communications	Bluetooth Wireless Technology Protocol: Bluetooth 2.0 Certified Class 1Radio Frequency: 2.40 to 2.48 GHzRadio Range (Open Air): 100.0 m / 328.1 ft

Data Capture Characteristics
Decoding Capability	Postal Codes : China Post
	1D / Linear Codes:Autodiscriminates all standard 1D codes including GS1DataBar™ linear codes.
	Stacked Codes :GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;GS1 DataBar Stacked Omnidirectional

Power Specifications
Battery Capacity	Reads per Charge: 22,000 in 16 Hours
Battery Charging time	Charge Time: External Power: 4 Hours
Battery Type	Battery Type: Lithium-Ion, 2400 mAh
Current Consumption	Operating (Typical): BC70X0: 280 mA @ 5 VDCStandby/Idle (Typical): BC70X0: 210 mA @ 5 VDC
Input Voltage	5 VDC +/- 5% ; 7 – 14 VDC

Environment Characteristics
Ambient Light Levels	100,000 lux
Drop Resistance	Withstands 50 drops from 2.0 m / 6.6 ft onto a concretesurface
Electrostatic Discharge (ESD Protection )	Air Discharge) 25 kV
Humidity	Non-Condensing) 5 – 95%
Operating Temperature	Temperature Operating: -20 to 50 °C / -4 to 122 °F
Particulate and Water Sealing	IP65
Storage Temperature	Storage/Transport: -40 to 60 °C / -40 to 140 °F

Physical Characteristics
Dimensions	Cradle: 23.9 x 11.7 x 4.8 cm / 9.4 x 4.6 x 1.9 inReader: 20.3 x 7.6 x 11.4 cm / 8.0 x 3.0 x 4.5 in
Weight	Cradle: 326.2 g / 11.5 ozReader: 354.4 g / 12.5 oz
Color	Black; Yellow/Black

Options
Accessories	Cases/Holsters :11-0138 Heated Holder, 36 VDC11-0139 Heated Holder, 24 VDC11-0140 Heated Holder, 48 VDC
	Mounts/Stands :11-0110 Hands Free Stand11-0111 Universal Mounting Kit for PowerScan7-0404 Industrial Take Up Reel
	Base Stations/Chargers :BC7010 Base/Charger, RS-232 / IBM 46XX / USBMulti-InterfaceBC7030 Base/Charger, RS-232 / USB / KeyboardWedge / Wand Multi-Interface
	Batteries/Battery Chargers :11-0202 Battery Charger, 4 Station, US T&L11-0203 Battery Charger, 4 Station, US Std11-0204 Battery Charger, 4 Station, Europe11-0205 Battery Charger, 4 Station, UK11-0234 Battery Pack
Agency Approvals	Agency Approvals The product meets necessary safety and regulatory approvalsfor its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Safety Standards	Environmental Compliance :Complies to China RoHS; Complies to EU RoHSLaser Classification :Caution Laser Radiation – Do not stare into beam; EN 60825-1Class 1
User Options	Utilities :Datalogic Aladd in™ Datalogic Aladdin configuration program is available fordownload at no charge.remote host download Lowers service costs and improves operations.
