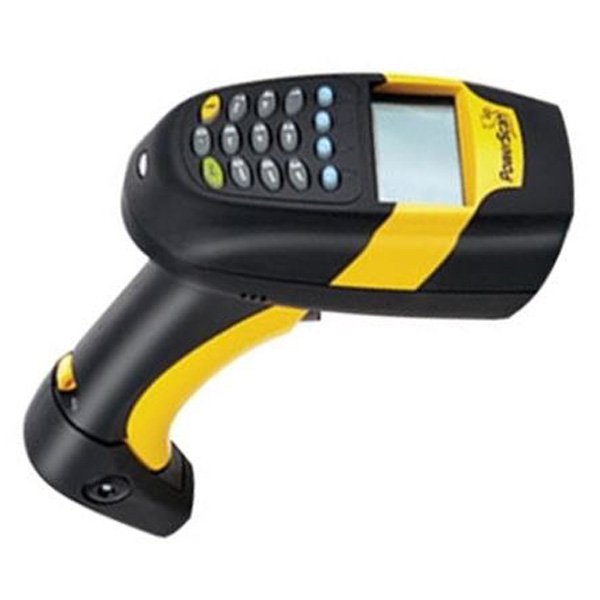

Datalogic POWERSCAN PBT8300 Laser Scanner

Bluetooth 2.0 Compliant: Class 1 or Class 2 configurable via software
Supports Bluetooth wireless technology SPP and HID profiles
Piconet with up to 4 scanners connected to the same base station
Optics available in Standard Range (contact up to 1.0 m / 3.3 ft) and Auto Range (20 cm / 8 in up to 12.5 m / 41.0 ft
Datalogic 3GL and loud beeper for good-read feedback

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datalogic POWERSCAN PBT8300 Laser Scanner

Scanning Characteristics
Depth Of Field	PBT8300 \|PBT8300 AR:5 mils: 2.1 to 13.3 cm / 0.8 to 5.2 in \|7.5 mils: 18.0 to 50.0 cm / 7.0 to 19.7 in
Print Contrast	Print Contrast Ratio (Minimum) 15%
Read Rate	(Maximum) 35 +/- 5 scans/sec.
Reading Angle	Pitch: 5 to 55° / -5 to -55; Roll (Tilt): +/- 20°; Skew (Yaw): +/- 60°
Scan Resolution	(Maximum) PBT83X0: 0.076 mm / 3 mils; PBT83X0 Auto Range: 0.190 mm /7.5 mils
Width of Field

Performance Characteristics
Cradle Indicator LEDs	Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Interface	RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Light Source	630 – 680 nm VLD; Aiming: 630 – 680 nm VLD, Activated by‘Double-Click’ Trigger
Reading Indicators (Beeper Operation)	(Adjustable Tone and Volume); Datalogic Three GreenLights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ onthe Code;Dual Good Read LEDs; Good Transmission

Communication Modules
Cordless Communications	Bluetooth Wireless TechnologyPiconet: Max.Readers per Radio Receiver: 4Profiles: HID (Human Interface Device); SPP (Serial Port Profile)Protocol: Bluetooth 2.0 Certified Class 1 or Class 2(configurable)Radio Frequency: 2.40 to 2.48 GHz;Radio Range (Open Air): Class 1: Exceeds 90 m / 295 ft radiorange;Class 2: Exceeds 40 m / 131 ft radio rangeRange distances are measured using the base station. Rangewith connection to other Bluetooth peripherals may showdifferent results.Security: Data Encryption; Scanner Authentication

Data Capture Characteristics
Decoding Capability	1D / Linear Codes : Autodiscriminates all standard 1D codes including GS1DataBar™ linear codes.
	Stacked Codes :Code 16K; Code 49; GS1 DataBar Expanded Stacked;GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Power Specifications
Battery Capacity	Reads per Charge: > 50,000
Battery Charging time	Charge Time: External Power: 4 Hours; Host Power: 10 hours
Battery Type	Battery Type: Lithium-Ion, 2150 mAh
Current Consumption	Operating (Typical): 1 A @ 10 VDC, 330 mA @ 30 VDC, POT: 500 mA
Input Voltage	Input Voltage 10 – 30 VDC, POT: 5 VDC +/- 10%

Environment Characteristics
Ambient Light Levels	Immune to light exposure in offices/facilities and directexposure to sunlight.
Drop Resistance	Withstands 50 drops from 2.0 m / 6.6 ft onto a concretesurface
Electrostatic Discharge (ESD Protection )	20 kV
Environment Sealing	Particulate and Water Sealing PBT8300: IP65; PBT8300-D, PBT8300-DK: IP64
Humidity	Humidity (Non-Condensing) 90%
Operating Temperature	Temperature Operating: -20 to 50 °C / -4 to 122 °F
Storage Temperature	Storage/Transport: -20 to 70 °C / -4 to 158 °F

Physical Characteristics
Dimensions	Cradle: 24.0 x 10.8 x 9.5 cm / 9.5 x 4.3 x 3.7 inPBT8300: 20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 inPBT8300-D, PBT8300-DK: 21.0 x 11.4 x 6.9 cm / 8.3 x 4.5 x 2.7 in
Display	Display Type: PBT8300-D, PBT8300-DK: Graphic with backlightFont Dimensions: PBT8300-D only: User selectable (4 lines x16 columns default)Screen Dimensions: 32 x 96 pixels
Keypad	Keypad PBT8300-D Only: 3-Key Keypad; PBT8300-DK: 16-Key Keypad
Weight	Weight Cradle: 380.0 g / 13.4 oz; PBT8300: 380.0 g / 13.4 ozPBT8300-D: 410.0 g / 14.4 oz; PBT8300-DK: 420.0 g / 14.8 oz

Options
Accessories	Base Stations/Chargers :BC8030-BT Base/Charger Multi-InterfaceCHR-PM80 Charger (C-8000)
	Mounts/Stands :7-0404 Industrial Take-Up ReelHLD-P080 Desk/Wall Holder (HLD-8000)STD-P080 Hands Free Stand (STD-8000)VMK-PM80 Vehicle Mount Kit
	Batteries/Battery Chargers :FBP-PM80 Fixed Battery Pack (FBP-8000)MC-P080 Multiple Battery Charger (MC-8000)RBP-PM80 Removable Battery Pack (RBP-8000)
	Cases/Holsters :11-0138 Heated Holder, 36 VDC; 11-0139 Heated Holder, 24 VDC ;11-0140 Heated Holder, 48 VDC (Heated Holders not for use withPBT8300-D/-DK models)HLS-P080 Universal Holster (HLS-8000)PC-P080, PCD-P080 Protective Case/Belt Holster (PC-8000,PC-8000-D)
Agency Approvals	The product meets necessary safety and regulatory approvalsfor its intended use.The Quick Reference Guide for this product can be referred tofor a complete list of certifications.
Safety Standards	Environmental Compliance : Complies to China RoHS; Complies to EU RoHSLaser Classification :Caution Laser Radiation – Do not stare into beam; CDRH Class II;EN 60825-1 Class 2
User Options	Utilities :Datalogic Aladd inTM Datalogic Aladdin configuration program is available fordownload at no charge.
