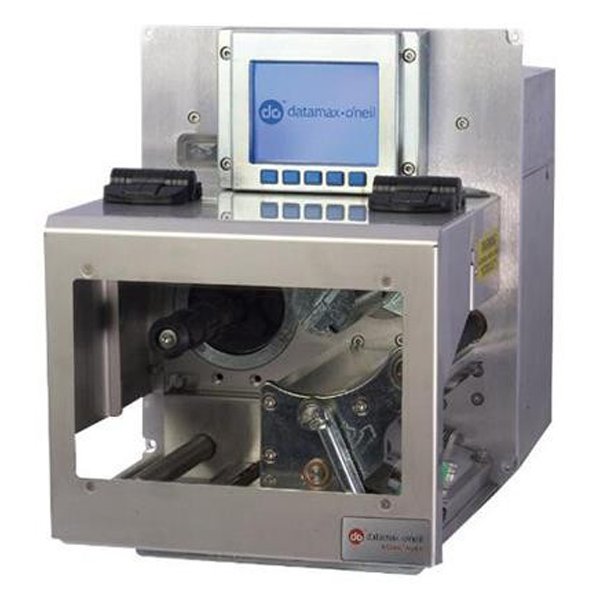

Datamax A-4310 Industrial Barcode Printer

Stainless Steel Cabinet: Protects your printer for years of service in rugged and extreme environments
Expanded Connectivity: Unlike other print engines, the A-Class Mark II includes four types of
communication ports as standard features – 10/100 LAN, USB, Serial and Parallel
Printer Language Emulation: Allows you to seamlessly integrate the A-Class into most existing

🌍 Worldwide Shipping Available

🛡 International Warranty Support

🔒 Secure Payment Options

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datamax A-4310 Industrial Barcode Printer

Printing Characteristics
Print Head	0.0027 x 0.0043 in(0.07 x 0.11 mm)
Print Length	0.25” – 99.99” (6mm – 2539.75mm)
Print Method	Direct thermal– Optional thermal transfer– Right-hand or left-hand versions available
Print Speed	10 ips (254 mm/sec)
Print Width	4.161 in (105.7 mm)
Resolution	300 dpi (12 dpmm)

Media Characteristics
Media Thickness	0.0025” – 0.010” (0.06mm – 0.25mm)
Media Type	Wound-out labels only and tag stock; roll-fed,die-cut, notched, reflective, continuous, andfan-fold

Ribbon Characteristics
Ribbon Length	2,132 ft. (650 m)
Ribbon Type	Coated side in or coated side out
Core Inner Diameter	1.01” +/- 0.006” (25.6 mm +/- 0.2 mm)inner diameter; core not to protrude beyondthe ribbon edge

Performance Characteristics
Memory	8MB Flash– 16MB DRAM

Fonts / Graphics / Symbologies
Barcode Symbologies	1D:Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved2 of 5, Industrial 2 of 5, Std 2 of 5, Code11, Code 93, Code 128, EAN-8, EAN-13,HIBC, Codabar, Plessey, UPC 2 and 5 digitaddendums, Postnet, UCC/EAN Code 128,Telepen, Planetcode, FIM, USPS-4 State
	2D:Symbologies: MaxiCode, PDF417, USD-8,Datamatrix, QR Code, Codeablock, Code 16k,Aztec, TLC 39, Micro PDF417, GS1 Databar
Character Sets	Over 50 resident character sets;Unicode/UTF8 support
Enlargement & Rotation	All fonts expandable vertically and horizontallyup to 24x; fonts and graphics can be printed infour directions: 0°, 90°, 180° and 270°s
Graphics	PCX, .BMP and .IMG files

Software
Driver / Utility	DMX Config: Complete printer setup utility– DMX NetManager– Embedded Network Web Pages
Emulation	PL-Z Zebra and PL-I Intermec
SDK	Windows Drivers – NT, XP, Vista

Environment Characteristics
Dealer Options	SDIO / USB host interface (non-“X” models only) MCL enabled ILPC (Hangul, Simplified Chinese, and Kanji)font support
Factory Options	Thermal transfer (field or factory installed)
Humidity	Operating humidity:10% to 90% non-condensingStorage humidity:5% to 95% non-condensing
Operation Environment	Operating temperature:40° F to 100° F (4° C to 38° C)
Storage Environment	Storage temperature:-40° F to 150° F (-40° C to 60° C)
User Options	Label present sensorPeel & present (1.5”/ 38mm min. label length) -basic or heavy-duty Internal rewinder (non-“X” models only) Powered internal rewinder (“X” models only)Standard cutter Large 240 x 320 display (non-“X” models only) Linear scanner RFID – UHF & HFGPIO interfaceWireless 802.11b/g
Water & Dust Resistance	Dust:– Non-conducting, non-corrosive

Physical Characteristics
Power Source	90 to 132 / 180 to 264 VAC @ 47 to 63 Hz,
