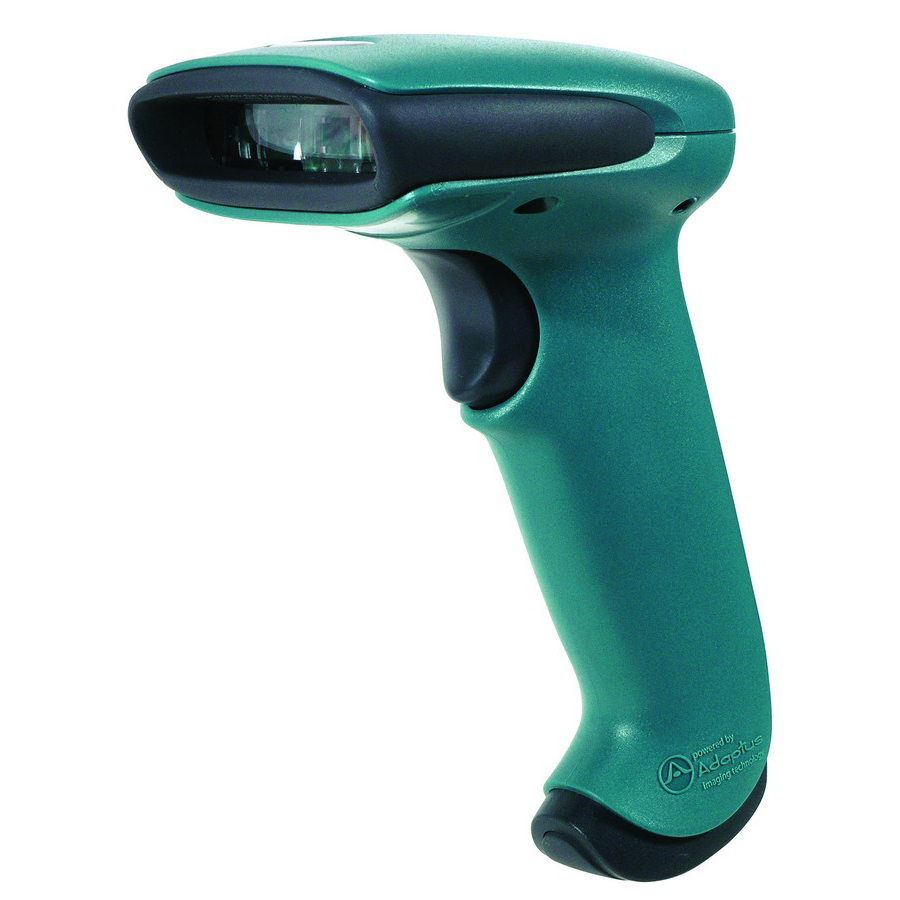

Honeywell 3800gHD Linear Imager Scanner

Optimized for High Density Reading: Superior reading performance on 3 mil linear bar codes, plus the versatility to read other common linear symbologies.
Intuitive Aiming Line: Thin, crisp aiming line for ease-of-use in scanning bar code menus and densely populated documents.
Swipe Action PDF417 Decoding: Supports PDF417, PDF417 Truncated, Composite, and MicroPDF.

✔

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

On orders above ₹999

No questions asked

Brand Official Warranty

100% protected

Scanning Characteristics
Motion Tolerance	25 cm/s (10 in/s) with 13 mil UPC at optimal focus
Print Contrast	37% minimum reflectance difference
Reading Perfomance	Narrow Width\| Depth of Field:3.0 mil \| 30 mm – 84 mm (1.2? – 3.3?).
Scan Angle	ELS: 51°Pitch, Skew 65°, 65°
Scan Pattern	Linear Image (CCD: 3648 pixels)
Scan Speed	270 scans per second

Performance Characteristics
Host System Interfaces	USB, TTL level RS232, Keyboard Wedge, IBM 46xx (RS485)

Data Capture Characteristics
Decoding Capability	Reads standard 1D and GS1 Databar symbologies.

Power Specifications
Input Voltage	5 VDC ± 0.5 V
Operating Power	Operating Power 2.3 W (450 mA @ 5 V)
Standby Power	Standby Power 430 mW (86 mA @ 5 V)

Environment Characteristics
Drop Resistance	Designed to withstand 1.5 m (5´) drops
Environmental Sealing	Sealed to resist airborne particulate contaminants
Humidity	0 to 95% relative humidity, non-condensing
Light Levels	70,000 Lux
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)

Physical Characteristics
Dimensions	112 mm x 79 mm x 150 mm (4.4? x 3.1? x 5.9´)
Weight	159 g (5.6 oz)
