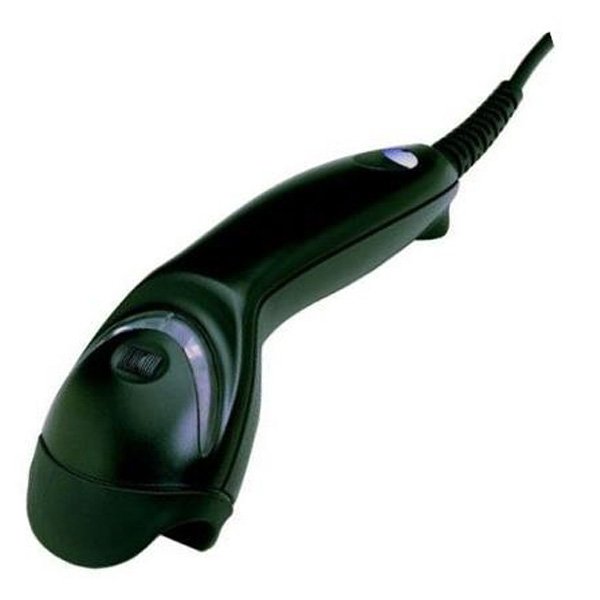

Honeywell Eclipse 5145 with RS232 port Laser Scanner
| Scanning Characteristics | |
| Print Contrast | Print Contrast 35% minimum reflectance difference |
| Reading Performance | Narrow Width |Depth of Field:5.2 mil |0 mm – 51 mm (0? – 2.0?) |
| Scan Angle | Horizontal: 50°Pitch, Skew 68°, 52° |
| Scan Pattern | Single scan line |
| Scan Resolution | Resolution: 4 mil (0.102 mm) |
| Scan Speed | 72 scan lines per second |
| Performance Characteristics | |
| Interface | Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485) |
| Data Capture Characteristics | |
| Decoding Capability | Reads standard 1D and GS1 DataBar symbologies. |
| Power Specifications | |
| Input Voltage | 5 VDC ± 0.25 V |
| Operating Power | 675 mW (125 mA @ 5 V) |
| Environment Characteristics | |
| Drop Resistance | Designed to withstand 1.5 m (5´) drops |
| Environment Sealing | Sealed to resist airborne particulate contaminants |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Light Levels | 4842 Lux |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Physical Characteristics | |
| Dimensions | 169 mm x 63 mm x 51 mm (6.7? x 2.5? 2.0?) |
| Weight | 100 g (3.5 oz) |
