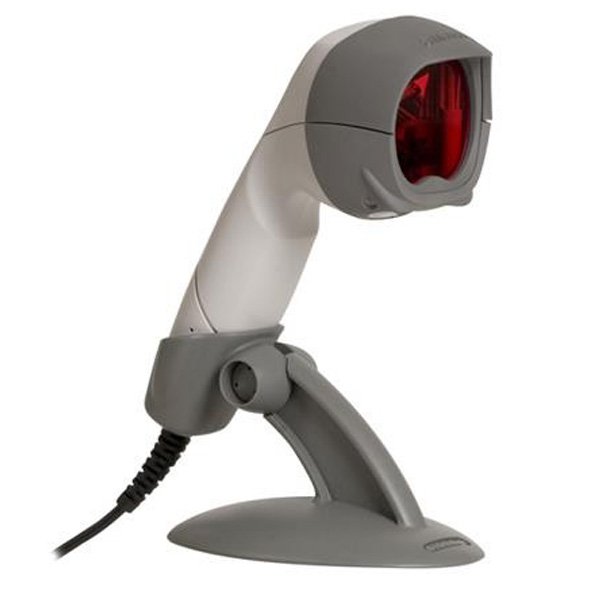

Honeywell Fusion 3780 Laser Scanner

Primary Omnidirectional Scan Pattern: Aggressive scanning in any orientation, increasing throughput
Secondary Single-Line Scan Pattern: With a push of a button, switch to a targeted single-line for menu scanning applications
Automatic In-Stand Detection: Hands-free operation for presentation scanning reduces operator fatigue

✔

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

On orders above ₹999

No questions asked

Brand Official Warranty

100% protected

Scanning Characteristics
Print Contrast	Print Contrast 35% minimum reflectance difference
Reading Performance	Narrow Width \|Depth of Field:5.2 mil \| 44 mm – 108 mm (1.8? – 4.3?).
Scan Angle	Pitch, Skew 60°, 60°
Scan Pattern	Omnidirectional: 5 fields of 4 parallel lines; Button activated single line
Scan Resolution	Resolution: 5 mil (0.127 mm)
Scan Speed	Single line: 67 scan lines per second
	Omnidirectional: 1,333 scan lines per second

Performance Characteristics
Interface	Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA

Data Capture Characteristics
Decoding Capability	Reads standard 1D and GS1 DataBar symbologies

Power Specifications
Input Voltage	5 VDC ± 0.25 V
Operating Power	Operating Power 1.4 W (275 mA @ 5 V)
Standby Power	1.0 W (200 mA @ 5 V)

Environment Characteristics
Drop Resistance	Designed to withstand multiple 1.5 m (5´) drop
Environment Sealing	Sealed to resist airborne particulate contaminants
Humidity	5% to 95% relative humidity, non-condensing
Light Levels	4842 Lux
Operating Temperature	-20°C to 40°C (-4°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)

Physical Characteristics
Dimensions	189 mm x 65 mm x 73 mm (7.4? x 2.6? x 2.9?)
Weight	195 g (6.9 oz)
