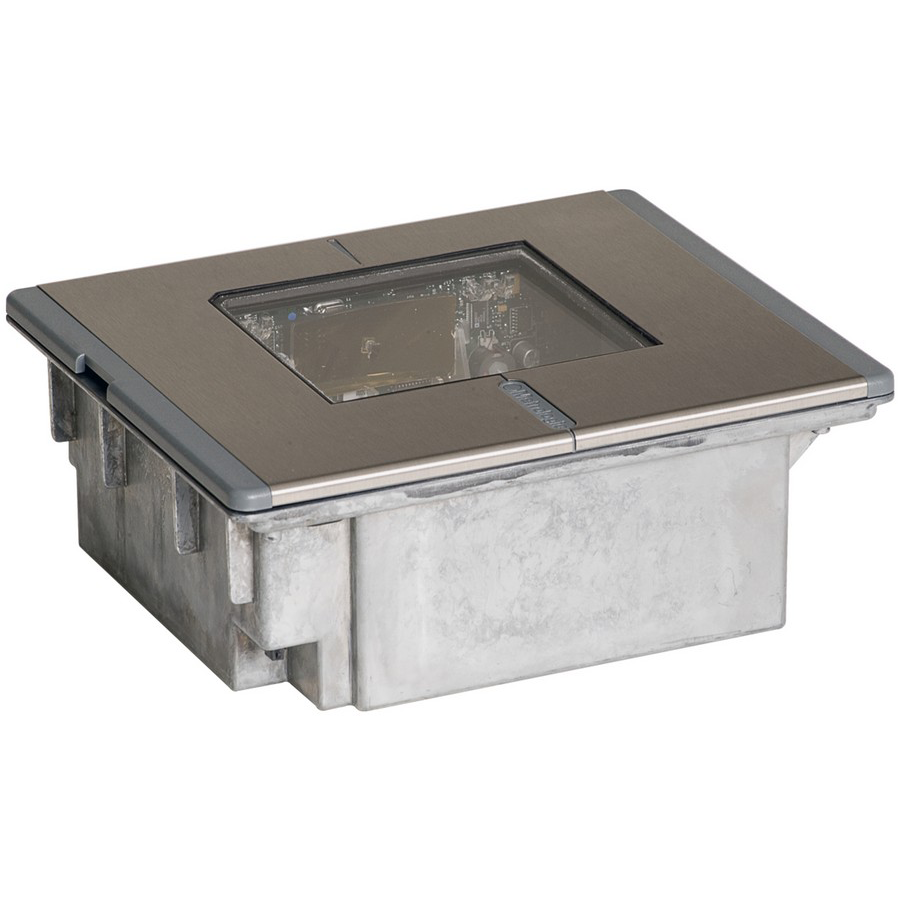

Honeywell Horizon 7600 Laser Scanner
| Scanning Characteristics | |
| Print Contrast | 35% minimum reflectance difference |
| Reading Performance | Narrow Width |Depth of Field:5.2 mil |0 mm – 38 mm (0? – 1.5?). |
| Scan Angle | Pitch, Skew 60°, 60° |
| Scan Pattern | Omnidirectional: 5 fields of 4 parallel lines |
| Scan Resolution | Resolution: 5 mil (0.125 mm) |
| Scan Speed | 2000 scan lines per second |
| Performance Characteristics | |
| Interface Ports | Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Wand EmulationAuxiliary Ports : RS232: Secondary Scanner or Scale, EAS |
| Data Capture Characteristics | |
| Decoding Capability | Reads standard 1D and GS1 DataBar symbologies. |
| Power Specifications | |
| Input Voltage | 5 VDC ± 0.25 V |
| Operating Power | 2.6 W (500 mA @ 5 V) |
| Standby Power | 830 mW (<165 mA @ 5 V) |
| Environment Characteristics | |
| Environment Sealing | Sealed to resist airborne particulate contaminants |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Light Levels | Light Levels 4842 Lux |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | (-40°C to 60°C )(-40°F to 140°F) |
| Physical Characteristics | |
| Dimensions | 88 mm x 229 mm x 193 mm (3.5? x 9.0? x 7.6?) |
| Weight | 2.9 kg (6.3 lbs) |
