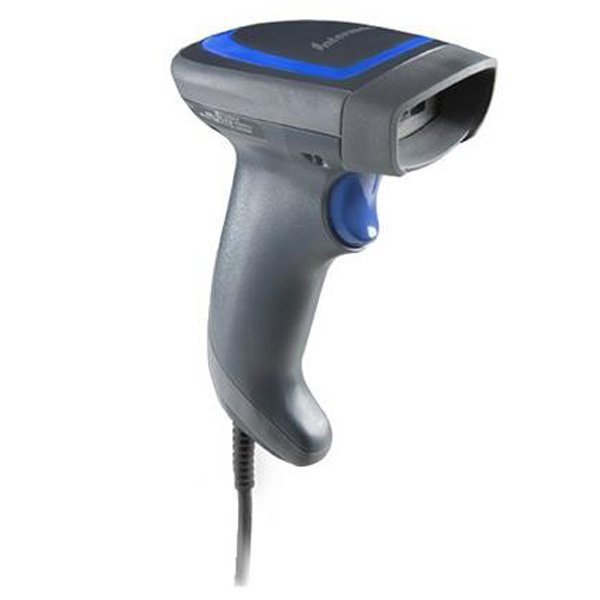

Intermec SR31T Area Imager Scanner

Fast – Available with the industry’s fastest 2D imaging technology for highly responsive, dependable scanning
Durable – Tested to withstand sixfoot drops to concrete and rated IP53
Easy to Use – Simple to install, with a plug-and-play universal cabling system
Adaptable – Can be customized to your environment, with adjustable LED color, beeper tone and vibration setting
Ergonomic – Time-tested design is comfortable to hold for extended periods

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Scanning Characteristics
Depth Of Field	EAN/UPC :0.33 mm 4 cm 46 cm (13 mils) (1.57 in) (10.11 in)
	DataMatrix :0.25 mm 5 cm 21 cm (10 mils) (1.97 in) (8.27 in)
	PDF417 :0.25 mm 3 cm 26 cm (10 mils) (1.18 in) (10.24 in) 0.38 (15 3 cm 35 cm mils) (1.18 in) (13.78 in)
Max. Scan Rate	SR31T1D: 200 scans/sMotion Tolerance:SR31THP: 500 in/sSR31T2D: 400 in/s
Print Contrast Ratio	Min. Print Contrast:SR31T1D: 20%,SR31T2D/HP: 20%.
Reading Perfomance	EAN/UPC:0.33 mm /4 cm /40 cm(13 mils) /(1.57 in) /(15.75 in)
	DataMatrix:0.25 mm/ 4 cm /18 cm (10 mils) /(1.57 in)/ (7.09 in)
	PDF417:0.25 mm /3 cm /24 cm(10 mils) /(1.18 in) /9.45 in) 0.38 3 cm /35 cm(15 mils)/ (1.18 in) (13.78 in)
	SR31THP Symbology :Density Minimum /Distance Maximum /DistanceCode 39 0.1 mm 4 cm 21 cm (4 mils) (1.57 in) (8.27 in) 0.125 mm 3 cm 26 cm (5 mils) (1.18 in) (10.24 in) 0.5 mm 5 cm 70 cm (20 mils) (1.97 in) (27.56 in) 1 mm 13 cm 124 cm (40 mils) (5.12 in) (48.82 in)
	SR31T2D Symbology:-Density/ Minimum Distance /Maximum Distance:Code 39:0.1 mm /3 cm /18 cm (4 mils)/ (1.18 in) /(7.09 in), 0.125 mm/ 3 cm /23 cm (5 mils)/ (1.18 in)/ (9.06 in), 0.5 mm /5 cm /66 cm (20 mils) /(1.97 in) /(25.98 in), 1 mm /13 cm /116 cm (40 mils) /(5.12 in) /(45.67 in),
	SR31T1D :-Density /Minimum Distance /Maximum Distance:Code 39 0.1 mm (4 mils)/ 4.5 cm (1.77 in) /21.5 cm (8.46 in), 0.125 mm (5 mils) /3.5 cm (1.38 in) /24 cm (9.45 in), 0.25 mm (10 mils) /3.5 cm (1.38 in)/ 31 cm (12.20 in), 1 mm (40 mils) /8.5 cm (3.35 in) /86 cm (33.86 in),EAN/UPC 0.33 mm (13 mils) /3.2 cm (1.26 in) /31.5 cm (12.40 in).
Scan Resolution	Min. Code Resolution:1D Codes: 4 mils,2D Codes: 6.6 mils.
Scan Technology	SR31THP: Intermec Area Imager with Laser Aimer (EA30)SR31T2D: Intermec Area Imager with LED Aimer (EA31)SR31T1D: Intermec Linear Imager (EV14+)

Performance Characteristics
Indicators	User FeedbackOversized, Multi-Color, Color-Customizable LEDConfigurable BuzzerConfigurable Vibrator

Communication Modules
Connectivity	USB: Virtual Com, HID profilesPOS Interfaces: HID POS, IBM SurePOSPC Keyboard WedgeRS232Wand EmulationOS Compatibility: iOS, Android®, Windows XP/Vista/7/8

Data Capture Characteristics
Decoding Capability	Bar Code Symbologies for 1D Model (SR31T1D):-Codabar, Code 11, Code 39, Code 93/93i, Code 128(GS1-128), EAN/UPC, GS1 DataBar Limited, GS1Composite (linear only), GS1 DataBar Expanded, GS1DataBar Omnidirectional, Interleaved 2 of 5, Matrix 2of 5, MSI, Plessey, Standard 2 of 5, TelepenBar Code Symbologies for 2D Models (SR31THP/2D):All above symbologies supported by 1D model plusthe following: DataMatrix, QR Code, Micro QR, PDF417,Micro PDF417, Aztec, Maxicode, Han Xin, Codablock A,Codablock F, GS1 Composite, TLC 39, and Postal Codes(Australian Post, BPO, Canada Post, Dutch Post,Infomail, Intelligent Mail, Japan Post, Planet, Postnet,Sweden Post)

Power Specifications
Power Consumption	SR31T2D/HP: 360 mA @ 5V DC,SR31T1D: 120 mA @ 5V DC.

Environment Characteristics
Drop Specification	26 drops from 1.83 m (6 ft.) to concrete
Environment Sealing	IP53
Humidity	5 to 95% non-condensing
Light Levels	Ambient Light: 0 to 100,000 lux
Operating Temperature	0°C to +50°C (32°F to +122°F)
Storage / Charging Temperature	-20°C to +70°C (-4°F to +158°F)
Tumble Specification	3000 tumbles at 1 m height

Physical Characteristics
Dimensions	10.7 cm (4.2 in) x 6.8 cm (2.7 in) x 16.8 cm (6.6 in)
Weight	195 gm (6.9 oz)

Options
Accessories	View the SR31T Accessory Guide for complete details.Adjustable StandGooseneck StandCables (USB, Powered USB, RS232, Keyboard WedgeInterface, Wand Emulation)EasySet™ Configuration Software
Regulatory Approvals	UL; CE Mark (EU); C-TICK (Australia and New Zealand)
Safety Standards	Environmental Compliance Requirements:Conforms to environmental compliance requirementsfor RoHS, China RoHS, WEEE, and REACH.
User Options	Electromagnetic Emissions StandardsMeets the requirements of the following productemission standards:FCC Part 15 Class B (United States)Industry Canada ICES-003 Class B (Canada)EN 55022: CISPR 22 Class B (European Union)
