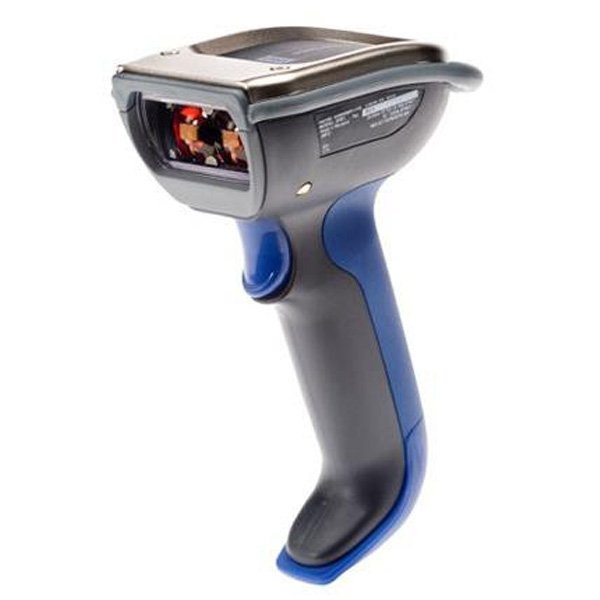

Intermec SR61T Area Imager Scanner

Ruggedized: Designed to maximize uptime by withstanding 26 drops to concrete or steel from 2 m (6.5 foot), hot and cold temperature extremes, constant forklift vibration and windblown dust and rain.
Easy to Use: All models feature highly visible, easy to use aimers that make spotting bar codes fast and efficient.
Ergonomic: Area imagers feature omnidirectional bar code reading to eliminate orientation and improve operator efficiency.
Powerful: 2D imagers feature VGA+ resolution image capture, real-time video, and 1D and 2D bar code scanning in a single, multipurpose device, spreading your investment over multiple uses.

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Intermec SR61T Area Imager Scanner

Scanning Characteristics
Reading Perfomance	2D SR61THP Symbology:-Density/ Minimum Distance/ Maximum DistanceCode 39:0.125 mm (5 mils)/ 8 cm (3.15 in) /14 cm (5.51 in)
	2D SR61T2D Symbology:-Density Minimum /Distance Maximum /Distance:Code 39 0.15 mm (6 mils)/ 15.5 cm (6.10 in) /22 cm (8.66 in)
	Linear SR61T1D Symbology:-Density /Minimum Distance /Maximum DistanceCode 39:0.1 mm (3.8 mils)/ 10 cm (3.94 in)/ 14 cm (5.51 in)
Scan Engine Options	HP – High Performance Area Imager (EA30)2D – Standard Area Imager (EA20x)1D – Linear Imager (EV10)L – Standard Range Laser (EL20)

Performance Characteristics
Interfaces	RS232, USB 2.0 (HID Keyboard, Virtual Com Port,Video Class), Keyboard Wedge, Wand Emulation

Communication Modules
Connectivity	Connection to Intermec computers and printers.Also connects to standard PCs.

Data Capture Characteristics
Decoding Capability	For 1D and Laser Models:-Codabar; Codablock A; Codablock F;Code 11; Code 39; Code 93/93i;Code 128/GSI-128; EAN/UPC;GSI Composite; GSI DataBar Expanded;GSI DataBar Limited;GSI DataBar OmniDirectional;GSI DataBar Stacked; Interleaved 2 of5; Matrix 2 of 5; Micro PDF417;MSI; PDF417; Plessey; Standard 2 of 5; Telepen; TLC 39These symbologies are only availablewith SR61TL (laser scanner).
	For 2D and HP Models:-Australian Post; Aztec; BPO; Canada Post; Codabar;Clodablock A; Codablock F; Code 11; Code 39;Code 93/93i; Code 128/GSI-128; DataMatrix; DutchPost; EAN/UPC; GSI Composite; GSI DataBar;Expanded; GSI DataBar Limited; GSI DataBarOmni-Directional; GSI DataBar Stacked; Infomail’Intelligent mail; Interleaved 2 of 5; Japan Post;Matrix 2 of 5; Maxicode; Micro PDF417;MSI; Multicode; PDF417;Planet; Plessey; Postnet; QR Code;Standard 2 of 5; Sweden Post; Telepen; TLC 39

Power Specifications
Power Consumption	5 vdc, 1.7A

Environment Characteristics
Drop Specification	Drop Survival: 26 drops onto concrete or steelsurface from a height of 1.98 meters (6.5 feet)
Environment Sealing	Rain and Dust Resistance: IP54
Humidity	5% to 95% RH, Non-condensing
Light Levels	Ambient light: Works in any lighting
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Ratchet Cycles	conditions from 0 to 100,000 lux
Shock	2000G
Storage / Charging Temperature	-40°C to +70°C (-40°F to +158°F)
Vibration	8G from 10Hz to 500Hz, 2hr/axis, 3 axes

Physical Characteristics
Dimensions	Length: 19.4 cm (7.6 in) Width: 7.2 cm (2.8 in)Height: 13.1 cm (5.2 in) Weight: 320 gm (11.2 oz)

Options
Accessories	Desktop HolderWall Mount/Vehicle HolderHands Free StandBelt HolsterDangle SuspensionWrist Strap (Lanyard)
Regulatory Approvals	SR61THP & SR61TL & SR61T2D Laser Class 2 product;SR61T1D Laser Class 1; CISPR 22 Class B; Part 15 of FCCrules, Class B; CE Mark (EU) (EN 55024, EN 55022 ClassB, IEC 60950-1, IEC 60825-1);cULus (Canada and theUSA) (UL 60950-1); GS Mark (Germany) (EN 60950-1,EN 60825-1); NOM (Mexico); C-TICK (Australia and NewZealand) (AS/NZS 3548 based on CISPR22); CQC (China)
