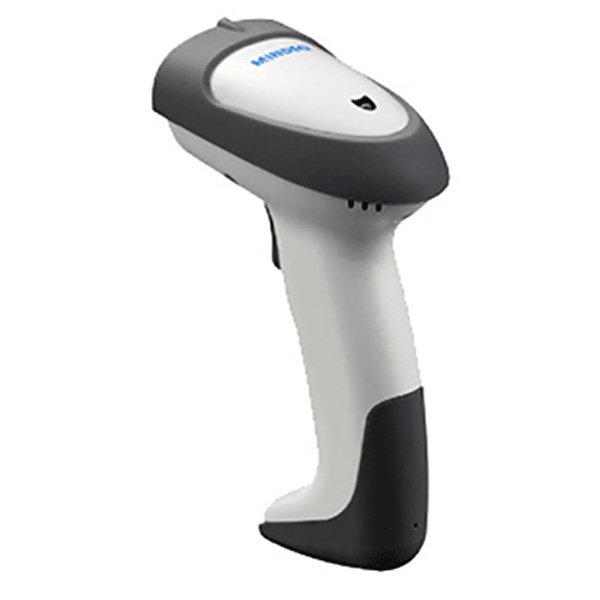

Mindeo MD 2230 Plus Laser Scanner
| Scanning Characteristics | |
| Scan Angle | ±60°, ±65°, ±42° (Skew, Pitch, Roll) |
| Performance Characteristics | |
| Indicator | Beeper, LED |
| Interfaces Supported | Keyboard wedge, RS-232, USB Keyboard, USB virtual COM |
| Operating Modes | Hand-held, Infra-red induction for MD2250AT Plus & MD2230AT Plus |
| Data Capture Characteristics | |
| Decoding Capability | All major 1D barcode symbologies including GS1 DataBar variants Beeper, LED |
| Decoding rate | 200 times/sec |
| Decoding depth & Max. resolution | 3 mil: 5-50mm 10 mil: 10-85mm 13 mil: 10-150mm 16 mil: 25-165mm 35 mil: 145-295mm |
| Power Specifications | |
| Current | 100 mA (Operating); 190 mA (Max.) |
| Input Voltage | 5 VDC ± 0.25V |
| Power Sources | 500 mW (Operating); 950 mW (Max.) |
| Standby Current | <250?A |
| Environment Characteristics | |
| Humidity | 5% to 95% (non-condensing) |
| Laser Class | 650nm laser diode |
| Storage Temperature | -40° to 60°C (-40° to 140°F) |
| Operating Temperature | 0° to 50°C (32° to 120°F) |
| Physical Characteristics | |
| Cable | Straight 2.0m |
| Case Material | PC+TPU |
| Dimensions | 9.5cm H × 6.7cm W × 15.4cm D |
| Weight | 168g, without cable |
| Connector type | RJ-45 phone jack connector |
| Options | |
| Programming method | Manual (reading special barcode) |
| Program upgrade | Online |
