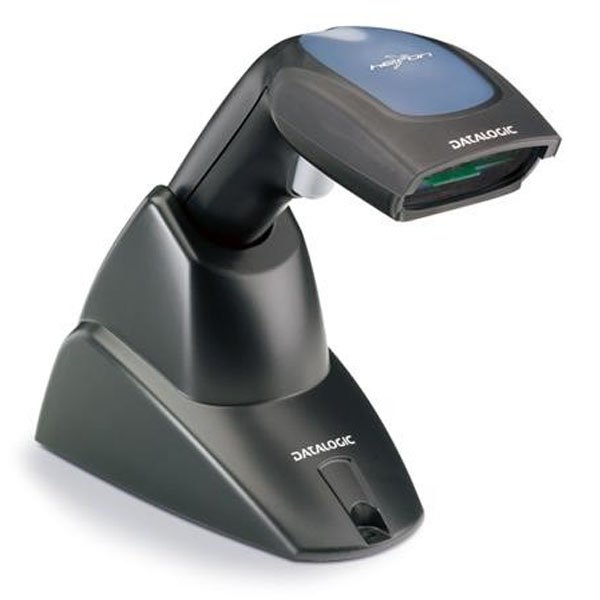

Datalogic Heron Linear Imager Scanner
| Scanning Characteristics | |
| Depth Of Field | 5 mils: 3.0 to 11.0 cm / 1.2 to 4.3 in |
| Print Contrast | RATIO MINIMUM 15% |
| Read Rate | MAXIMUM 256 reads/sec. |
| Reading Angle | Pitch: 75°; Roll (Tilt): 30°; Skew (Yaw): 70° |
| Scan Resolution | MAXIMUM 0.100/4mils |
| Performance Characteristics | |
| Indicators | GoodRead LED |
| Interface | Keyboard Wedge: D130; RS-232: D130; RS-232 / IBM 46XX:D110, D150; USB: |
| Light Source | Illumination: Red LED 640 nm |
| Optical System | IMAGER SENSOR CCD Solid-state 2048 pixels |
| Reading Indicators (Beeper Operation) | Beeper; Datalogic ‘Green Spot’ Good Read Feedback; |
| Data Capture Characteristics | |
| Decoding Capability | 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1DataBar™ linear codes. |
| Stacked Codes: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1DataBar Stacked Omnidirectional | |
| Power Specifications | |
| Current Consumption | Operating (Typical): 155 mA @ 5 VDCStandby/Idle (Typical): < 2.5 mA @ 5 VDC |
| Input Voltage | 5 VDC +/- 5% |
| Environment Characteristics | |
| Ambient Light Levels | 0 – 100,000 lux |
| Drop Resistance | Withstands repeated drops from 1.8 m / 5.9 ft onto a concretesurface. |
| EAS Support | Check point system:D150 |
| Electrostatic Discharge (ESD Protection ) | AIR DIScHARGE 16 |
| Humidity | Non Condensing 90% |
| Operating Temperature | TEMPERATURE Operating: 0 to 55 °C / 32 to 131 °F |
| Particulate and Water Sealing | IP30 |
| Storage Temperature | Storage/Transport: -20 to 70 °C / -4 to |
| Physical Characteristics | |
| Dimensions | 15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in |
| Weight | 160.0 g |
| Color | Dark Grey |
| Options | |
| Agency Approvals | The product meets necessary safety and regulatory approvalsfor its intended use.The Quick Reference Guide for this product can be referred tofor a complete list of certications. |
| Safety Standards | Environmental Compliance : Complies to China RoHS; Complies to EUROHSLED ClASSIFIcATION IEC 60825 Class 1 LED |
| User Options | UTIlITIES :DATAlOGIc AlAdd IN™ Datalogic Aladdin con guration program is available fordownload at no charge.OPOS / JAvAPOS JavaPOS Utilities are available for download at no |
