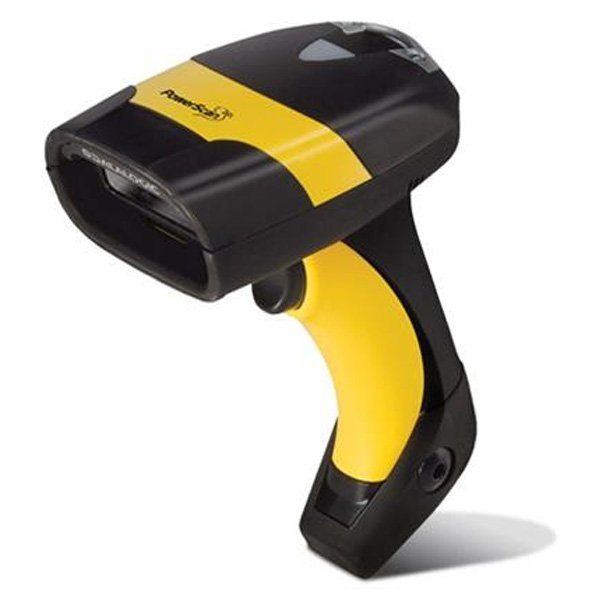

Datalogic POWERSCAN PD8300 Laser Scanner

Optics available in Standard Range (contact up to over 1.0 m / 3.3 ft) and Auto Range (20 cm / 8.0 in to over 12.5 m / 41.0 ft)
Datalogic 3GL™ and loud beeper for good read feedback
Built-in multiple interface (RS-232, Keyboard Wedge, Wand and USB)
Undecoded Laser Output Model

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Datalogic POWERSCAN PD8300 Laser Scanner

Scanning Characteristics
Depth Of Field	PD 8300:5 mils: 2.1 to 13.3 cm / 0.8 to 5.2 in
	PD 8300 AR7.5 mils: 7.0 to 46.5 cm / 2.7 to 18.3 inReflective -100 mils: 1.5 to 12.5 m / 4.9 to 41.0 ft
Print Contrast	Print Contrast Ratio (Minimum) 15%
Read Rate	(Maximum) 35 +/- 5 scans/sec.
Scan Angle	Pitch: 5 to 55° / -5 to -55°; Roll (Tilt): +/- 20°; Skew (Yaw): +/-60°
Scan Resolution	(Maximum) D83X0: 0.076 mm / 3 mils; D83X0 Auto Range: 0.190 mm / 7.5mils

Performance Characteristics
Aiming Source	Aiming: 630 – 680 nm VLD, Activated by ‘Double-Click” Trigger
Indicators	Datalogic ‘Green Spot’ on the Code, Dual Good ReadLEDs
Interface	Keyboard Wedge; RS-232; Undecoded Laser Output-ModelD8340 Only; USB; Wand
Light Source	630 – 680 nm VLD
Reading Indicators (Beeper Operation)	Beeper; Datalogic Three Green Lights (3GL™) Good ReadFeedback:

Data Capture Characteristics
Decoding Capability	1D / Linear Codes :Autodiscriminates all standard 1D codes including GS1DataBar™ linear codes.
	Stacked Codes :Code 16K; Code 49; GS1 DataBar Expanded Stacked;GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Power Specifications
Current Consumption	Operating (Typical): D8330: 420 mA @ 4 V; 310 mA @ 5 V; 62mA @30 VD8340: 500 mA @ 4 V; 370 mA @ 5V; 70 mA @ 30 VStandby/Idle (Typical): 4 mA
Input Voltage	4 – 30 VDC

Environment Characteristics
Ambient Light Levels	Immune to light exposure in offices/facilities and directexposure to sunligh
Drop Resistance	Withstands 50 drops from 2 m / 6.6 ft to concrete
Electrostatic Discharge (ESD Protection )	(Air Discharge) 20 kV
Environment Sealing	Particulate and Water Sealing IP65
Humidity	(Non-Condensing) 90%
Operating Temperature	-30 to 50 °C / -22 to 122 °F
Storage Temperature	Storage/Transport: -30 to 50 °C / -22 to 122 °F

Physical Characteristics
Dimensions	20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 in
Weight	295.0 g / 10.4 oz
Color	Yellow/Black

Options
Accessories	Mounts/Stands :7-0404 Industrial Take-Up ReelHLD-P080 Desk/Wall Holder (HLD-8000)STD-P080 Hands Free Stand (STD-8000)
	Cases/Holsters :11-0138 Heated Holder, 36 VDC11-0139 Heated Holder, 24 VDC11-0140 Heated Holder, 48 VDCHLS-P080 Universal Holster (HLS-8000)PC-P080 Protective Case/Belt Holster (PC-8000)
Agency Approvals	The product meets necessary safety and regulatory approvalsfor its intended use.The Quick Reference Guide for this product can be referred tofor a complete list of certifications.
Safety Standards	Environmental Compliance Complies to EU RoHSLaser Classification : Caution Laser Radiation – Do not stare into beamCDRH Class IIIEC 60825-1 Class 2
User Options	UtilitiesDatalogic Aladd in™ Datalogic Aladdin configuration program is available fordownload at no charge.
