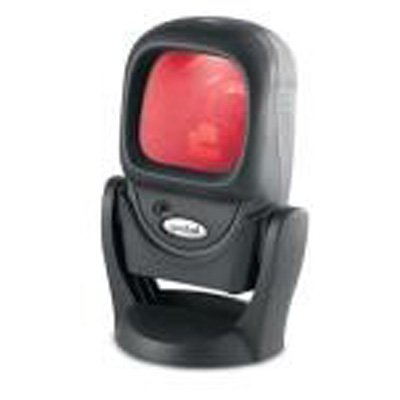

Motorola 1D9208 Laser Scanner

Small, reliable POS Presentation scanner
Ergonomic lightweight and durable design
Hands-Free or Handheld operation
Variety of Interface options

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Motorola 1D9208 Laser Scanner

Scanning Characteristics
Print Contrast	25% minimum reflective difference
Scan Angle	Roll 360°
	Pitch ± 65°
	Yaw ± 60°
Scan Resolution	Minimum Resolution : Code 39 – 4 milUPC – 7.8 mil (60%)
Swipe Speed	(Vertical Read Rate)Up to 90 in./2.3 m per second
Nominal Working Range	Code 39 – 5 mil: 0 – 4.5 in. (0 – 11.4 cm)
	UPC/EAN – 10 mil (80%): 0 – 8.5 in. (0 – 21.6 cm)
	UPC/EAN – 13 mil (100%): 0 – 10.5 in. (0 – 26.7 cm)
Scanner Field of View	46° Horizontal x 29.5° Vertical

Performance Characteristics
Interface	USB, RS-232, RS-485 (IBM 46xx Protocols),Keyboard Wedge
Light Source	Aiming pattern: single dot, 625nm LED
	Illumination: 630nm LEDs

Data Capture Characteristics
Decoding Capability	1-D : UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals,ISBN (Bookland), ISSN, Coupon Code),Code 39 (Standard, Full ASCII, Trioptic,Code 32 (Italian Pharmacode), Code 128(Standard, Full ASCII, UCC/EAN-128,ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete2 of 5, IATA, Chinese 2 of 5, Matrix 2 of5, Code 11), MSI Plessey, GS1 DataBar(Omnidirectional, Truncated, Stacked,Stacked Omnidirectional, Limited,Expanded, Expanded Stacked)

Power Specifications
Voltage and Current	Idle: 5 ± 10% VDC @ 150ma average
	Scanning: 5 ± 10% VDC @ 230ma average

Environment Characteristics
Ambient Light Immunity	Immune to natural and artificial ambientlight (i.e. sunlight, incandescent,fluorescent, mercury vapor, sodium vapor)
Drop Specification	Withstands multiple 5 ft./1.5 mdrops to concrete
Humidity	5% to 85% RH (non-condensing)
Operating Temperature	32° F to 104° F / 0° to 40° C

Physical Characteristics
Dimensions	5.512 in. H x 3.232 in. W x 3.150 in. D14.0 cm H x 8.21 cm W x 8.0 cm D
Weight	9.5 oz./269 g
Color	Midnight Black, Alpine White

Options
Accessories	Wall mount bracket; locking mount bracket
Regulatory Approvals	Electrical Safety UL6950-1, CSA C22.2 No. 60950-1:2nd ed.,EN60950-1: 2nd ed. + A11: 2009IEC60950-1: 2nd ed.
	LED Safety IEC / EN 60825-1: 2001 Class 1M LED,EN 62471: 2008IEC 62471: 2006
	EMI/RFI FCC CFR47 Part 15 Class B: 2007,ICES-003 Issue 4 :2004 Class B,EN 55022: 2006 + A1: 2007,EN 55024: 1998 +A1: 2001 + A2: 2003AS/NZS CISPR22:2006,VCCI:2007
	Environmental Compliant with RoHS Directive 2002/95/EC
User Options	Electronic ArticleSurveillanceCompatible with Checkpoint EASdeactivation systems
