| Scanning Characteristics | |
| Motion Tolerance | Up to 60 in./sec. (1.52m/sec.) for 100% 13 milUPC. Motion tolerance will vary depending oncode type, scan distance and print quality. |
| Reading Perfomance | DS3578-SR:-Paper Label |English |Metric:Code 39 – 3 mil |N/A | N/A,100% UPC – 13 mil | 0.90†– 15.10†|2.29 – 38.35 cm,PDF417 – 6.67 mil |2.70†– 6.10†|6.86 – 15.49 cm,Data Matrix – 4 mil |N/A |N/A,QR Code – 4 mil |N/A |N/A. |
| DS3578-HD/ DS3578-DP:- Paper Label | English | Metric:Code 39 – 3 mil | 1.10” – 1.60” | 2.79 – 4.06 cm,100% UPC – 13 mil |0.80” – 6.20” |2.03 – 15.75 cm,PDF417 – 6.67 mil |Contact – 3.70” | Contact – 9.40 cm,Data Matrix – 4 mil |1.00” – 2.10” | 2.54 – 5.33 cm,QR Code – 4 mil | 1.10 – 1.40” | 2.79 – 3.56 cm. | |
| Scan Angle | Roll/Pitch/Yaw 360°, ±65°, ±60° |
| Performance Characteristics | |
| Imager Field Of View | Standard Range Focus: 39.6° H x 25.7°VHigh Density Focus: 38.4° H x 24.9° V |
| Interface | USB, RS-232, RS-485 (IBM 46xx Protocols) andKeyboard Wedge |
| Light Source | Aiming pattern: 650nm visible laser diodeIllumination: 630nm LE D |
| Communication Modules | |
| Data Rate | Basic Data Rate is 720 kbpsEnhanced Data Rate (EDR) for image transfer |
| Frequency | 2.402 to 2.480 GHz adaptive frequencyhopping and co-existence with 802.11wireless networks |
| Radio | Bluetooth Class II Version 2.1, Serial Port andHID Profiles |
| Radio Range | Radio range: Up to 300 ft. (100m) direct lineof sight in open air. Typical indoor cordlessrange is 100 ft. (33m), but range will varydepending upon environment; seeBluetooth Radio Performance TechnicalBrief for more information |
| Data Capture Characteristics | |
| Decoding Capability | 2D Codes :TL C-39, Aztec (Standard, Inverse),MaxiCode, DataMatrix/ECC 200 (Standard,Inverse), QR Code (Standard, Inverse, Micro)Postal U.S. Postnet, U.S. Planet, U.K. Postal, JapanPostal, Australian Postal, Dutch Postal,4 State Postal |
| 1D Codes :UPC/EA N and with supplementals, Code 39,Code 39 Full ASCII , Tri-optic Code 39, GS1DataBar Variants, GS1-128, Code 128,Code 128 Full ASCII , Code 93, Codabar (NW1),Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell,IATA , Bookland EA N, Code 32PDF417 (and Variants):PDF417 (Standard, Macro), MicroPDF417(Standard, Macro), Composite Codes(CC-A, CC-B, CC-C) | |
| DPM Marks(DPM unit only):Datamatrix marks applied by dot-peening.All supported barcode types listed abovemarked by laser etching, chemical etching,ink marking, molding, stamping or castingmethods on surfaces such as includingmetal, plastic, rubber or glassIUID Support Supports IUID parsing. The ability to readand separate IUID fields per applicationrequirements | |
| Power Specifications | |
| Battery Charging time | Fully charged (100%) within 4.5 hours usingan external power supply and up to ten hoursusing a USB cable |
| Battery Type | 2200 mAh Lithium Ion Battery |
| Cradles | Not charging:35 mA 105 mA @5V45 mA @9V 110 mA @9V |
| Fast rate charge:915 mA @5V 915 mA @5V660 mA @9V 660 mA @9V | |
| Slow rate charge:480 mA @5V 480 mA @5V345 mA @9V 345 mA @9V | |
| Charging Only | BluetoothSTB 3508 and FLB 3508 |STB 3578 and FLB 3578Power Reqs. 4.75-14 VDC |4.75-14 VDC | |
| Environment Characteristics | |
| Ambient Light Levels | Indoor: 450 Ft Candles (4,842 Lux)Outdoor: 8,000 Ft Candles (86,080 Lux) |
| Cradle Insertions | Cradle Insertions 250,000+ insertions |
| Drop Specification | Drop Specifications Unit functions normally after repeated6.5 ft. (2 m) drops to concrete |
| Electrostatic Discharge (ESD Protection ) | 15 kV air discharge8 kV contact discharge |
| Environment Sealing | Sealing Sealed to IP65 specifications |
| Humidity | Humidity 5% to 95% relative humidity, non-condensing |
| Operating Temperature | -4° F to 122° F/-20° C to 50° C |
| Storage Temperature | -40° F to 158° F/-40° C to 70° C |
| Physical Characteristics | |
| Dimensions | 7.34 in. H x 4.82 in. W x 2.93 in. D18.65 cm H x 12.25 cm W x 7.43 cm D |
| Weight | 14.6 oz. (414 gm) |
| Color | Twilight Black/Yellow |
| Options | |
| Accessories | Holster (mounts to pants or belt); ToolBalancer Pulley (tethered); Standard Cradle(Charge Only); Standard Cradle (Radio/Charge); Fork-Lift Cradle (Charge Only);Fork-Lift Cradle (Radio/Charge) |
| Regulatory Approvals | Electrical Safety :UL60950-1, CSA C22.2 No. 60950-1,EN 60950-1 / IE C 60950-1Laser Safety :EN 60825-1, IE C 60825-1, 21CFR1040.10,CDRH Class II , IE C Class 2EMI/RFI :FCC Part 15 Class B, ICES-003 Class B,EN 55022, EN 55024, AS/NZS 4268:2008,Japan VCCIEnvironmental Compliant: with RoHS directive 2002/95/EE C |

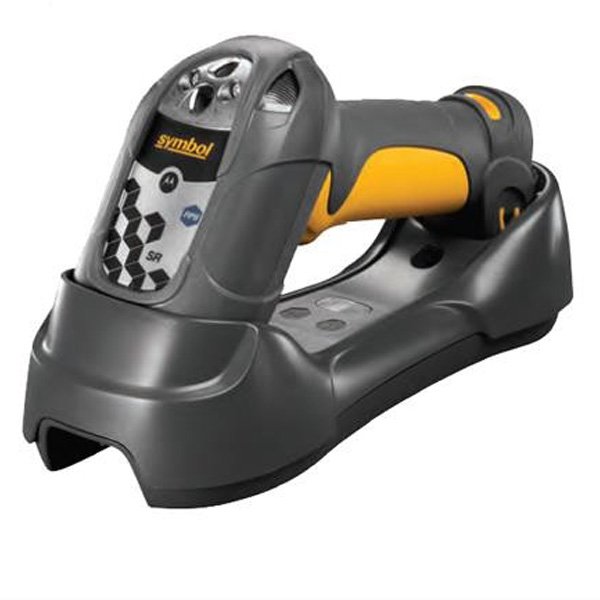

Motorola DS3578 Area Imager Scanner
- Ability to read both 1D and 2D barcodes
- Increases productivity by providing one device that can read all industry standard barcodes
- Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast-pulse illumination
- Superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications
- IUID-enabled (DS3578-DP only)
