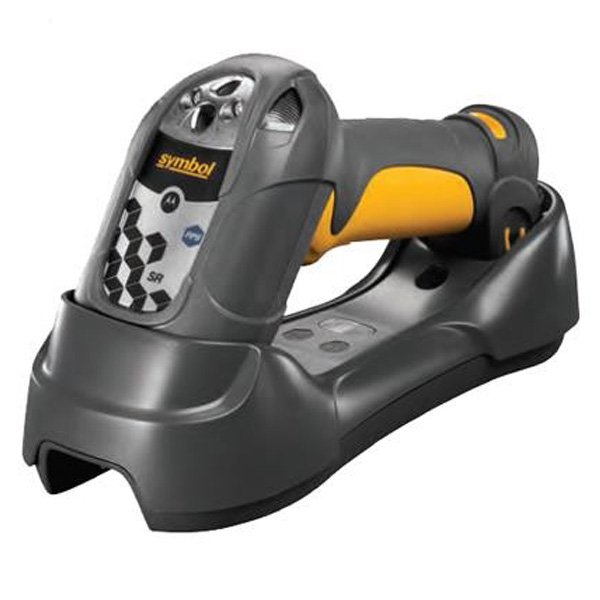

Motorola DS3578-DP Area Imager Scanner

Ability to read 1D, 2D bar codes and direct part marks
Bluetooth Class II Version 2.1 Serial Port and HID Profiles
Ability to read a wide variety of DPM marks, as DataMatrix marks applied by dot-peening and DataMatrix, QR-Code…. marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Motorola DS3578-DP Area Imager Scanner

Scanning Characteristics
Depth Of Field	Paper Label \| English\| Metric:Code 39 – 3 mil \| 1.10” – 1.60” \| 2.79 – 4.06 cm,100% UPC – 13 mil \| 0.80” – 6.20” \| 2.03 – 15.75 cm,PDF417 – 6.67 mil\| Contact – 3.70”\| Contact – 9.40 cm,Data Matrix – 4 mil\| 1.00” – 2.10”\| 2.54 – 5.33 cm,QR Code – 4 mil\| 1.10 – 1.40”\| 2.79 – 3.56 cm.
Motion Tolerance	Up to 60 in./sec. (1.52m/sec.) for 100% 13 milUPC. Motion tolerance will vary depending oncode type, scan distance and print quality.
Scan Angle	Roll/Pitch/Yaw 360°, ±65°, ±60°

Performance Characteristics
Imager Field Of View	Standard Range Focus: 39.6° H x 25.7°VHigh Density Focus: 38.4° H x 24.9° V
Interface	USB, RS-232, RS-485 (IBM 46xx Protocols) andKeyboard Wedge
Light Source	Aiming pattern: 650nm visible laser diodeIllumination: 630nm LE D

Communication Modules
Data Rate	Basic Data Rate is 720 kbpsEnhanced Data Rate (EDR) for image transfer
Frequency	2.402 to 2.480 GHz adaptive frequencyhopping and co-existence with 802.11wireless networks
Radio	Bluetooth Class II Version 2.1, Serial Port andHID Profiles
Radio Range	Radio range: Up to 300 ft. (100m) direct lineof sight in open air. Typical indoor cordlessrange is 100 ft. (33m), but range will varydepending upon environment; seeBluetooth Radio Performance TechnicalBrief for more information

Data Capture Characteristics
Decoding Capability	Postal: U.S. Postnet, U.S. Planet, U.K. Postal, JapanPostal, Australian Postal, Dutch Postal,4 State Postal
	IUID Support :Supports IUID parsing. The ability to readand separate IUID fields per applicationrequirements
	PDF417 (andVariants):PDF417 (Standard, Macro), MicroPDF417(Standard, Macro), Composite Codes(CC-A, CC-B, CC-C)
	2D Codes:TL C-39, Aztec (Standard, Inverse),MaxiCode, DataMatrix/ECC 200 (Standard,Inverse), QR Code (Standard, Inverse, Micro)
	1D Codes:UPC/EA N and with supplementals, Code 39,Code 39 Full ASCII , Tri-optic Code 39, GS1DataBar Variants, GS1-128, Code 128,Code 128 Full ASCII , Code 93, Codabar (NW1),Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell,IATA , Bookland EA N, Code 32
	DPM Marks(DPM unit only):Datamatrix marks applied by dot-peening.All supported barcode types listed abovemarked by laser etching, chemical etching,ink marking, molding, stamping or castingmethods on surfaces such as includingmetal, plastic, rubber or glass

Power Specifications
Battery Charging time	Fully charged (100%) within 4.5 hours using an external power supply and up to ten hours using a USB cable
Battery Type	Battery 2200 mAh Lithium Ion Battery
Cradles	Not charging:35 mA 105 mA @5V45 mA @9V 110 mA @9V
	Fast rate charge:915 mA @5V 915 mA @5V660 mA @9V 660 mA @9V
	Charging Only \| Bluetooth:STB 3508 and STB 3578 \| FLB 3508 and FLB 3578Power Reqs. 4.75-14 VDC\| 4.75-14 VDC
Input Voltage	Slow rate charge:480 mA @5V 480 mA @5V345 mA @9V 345 mA @9V

Environment Characteristics
Ambient Light Levels	Ambient LightImmunityIndoor: 450 Ft Candles (4,842 Lux)Outdoor: 8,000 Ft Candles (86,080 Lux)
Cradle Insertions	250,000+ insertions
Drop Specification	Unit functions normally after repeated6.5 ft. (2 m) drops to concrete
Electrostatic Discharge (ESD Protection )	15 kV air discharge8 kV contact discharge
Environment Sealing	Sealed to IP65 specifications
Humidity	Humidity 5% to 95% relative humidity, non-condensing
Operating Temperature	-4° F to 122° F/-20° C to 50° C
Storage Temperature	-40° F to 158° F/-40° C to 70° C

Physical Characteristics
Dimensions	7.34 in. H x 4.82 in. W x 2.93 in. D18.65 cm H x 12.25 cm W x 7.43 cm D
Weight	Weight 14.6 oz. (414 gm)
Color	Twilight Black/Yellow

Options
Accessories	Holster (mounts to pants or belt); ToolBalancer Pulley (tethered); Standard Cradle(Charge Only); Standard Cradle (Radio/Charge); Fork-Lift Cradle (Charge Only);Fork-Lift Cradle (Radio/Charge)
Regulatory Approvals	Electrical Safety: UL60950-1, CSA C22.2 No. 60950-1,EN 60950-1 / IE C 60950-1Laser Safety: EN 60825-1, IE C 60825-1, 21CFR1040.10,CDRH Class II , IE C Class 2EMI/RFI FCC Part 15 Class B, ICES-003 Class B,EN 55022, EN 55024, AS/NZS 4268:2008,Japan VCCIEnvironmental Compliant with RoHS directive 2002/95/EE C
