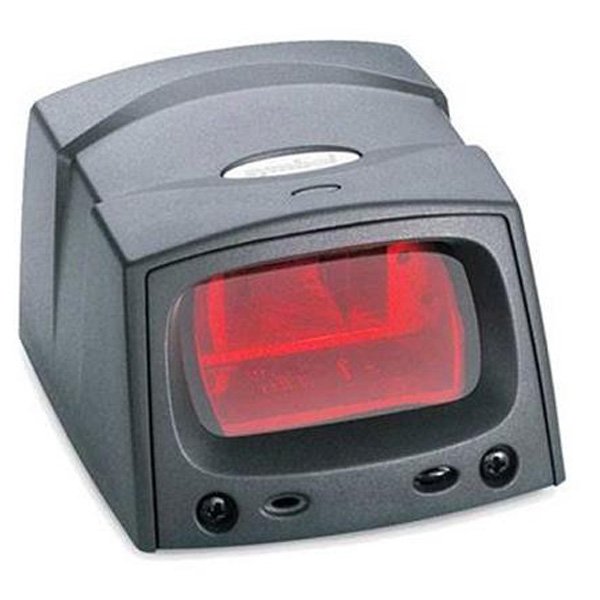

Motorola MS12XX Laser Scanner

High-performance scan module with fuzzy logic decode capability
Premium scanning for all 1D bar codes including poorly printed and low contrast symbols
Reads all major 1D symbologies including Reduced Space Symbology
Enables devices to realize a high first-time read rate for improved productivity
MS 12XX FZY decode range from near contact to over 60 in./152 cm

✔

In Stock & Ready for Dispatch

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Motorola MS12XX Laser Scanner

Scanning Characteristics
Print Contrast	MS12XX FZY:Minimum Print Contrast: Minimum 20% absolute dark/light reflectance measured at 650 nm
	MS-1207WA :Minimum Print Contrast: Minimum 20% absolute dark/light reflectance measured at 670 nm
Scan Angle	MS-1207WA:60° ± 2°
	MS12XX FZY:Default (Wide): 42° ± 2°, Alternate (Narrow): 30° ± 2°
Scan Engines	Model 1:MS12XX FZY Model 2: MS-1207WA
Scan Pattern	MS12XX FZY:Linear
	MS-1207WA :Linear
Scan Rate	MS-1207WA:35 (± 5) scans/sec (bi-directional)
	MS12XX FZY:35 (± 5) scans/sec (bi-directional)

Performance Characteristics
Interface	MS-1207WA:TTL RS 232, USB, Synapse
	MS12XX FZY:Symbol MS1204 FZY: RS 232Symbol MS1207 FZY: TTL, RS 232, USB, Synapse
Light Source	MS-1207WA:Visible Laser Diode 670 nm
	MS12XX FZY:Visible Laser Diode 650 nm

Data Capture Characteristics
Decoding Capability	MS-1207WA: Ranges -1D codes:5 mil: Code 39; 2.5:1 – 80%MRD: 1 – 4 (in) / 2.54 – 10.16 (cm),7.5 mil: Code 39; 2.5:1 – 80%MRD: 0.6 – 7.2 (in) / 1.52 – 18.29 (cm),13 mil: 100% UPC – 80%MRD: 0.6 – 11 (in) / 1.52 – 27.94 (cm),20 mil: Code 39; 2.2:1 – 80%MRD: * – 15 (in) / * – 38.10 (cm),40 mil: Code 39; 2.2:1 – 80%MRD: * – 19 (in) / * – 48.26 (cm),55 mil reflective: Code 39; 2.2:1 – 80%MRD: * – 24 (in) / * – 60.96 (cm).
	MS12XX FZY: Ranges – 1D codes: 5 mil: Code 39; 2.5:1 – 80%MRD: 3.25 – 7 (in) / 8.26 – 17.78 (cm),7.5 mil: Code 39; 2.5:1 – 80%MRD: 3 – 12.5 (in) / 7.62 – 31.75 (cm),13 mil: 100% UPC – 80%MRD: 2.2 – 25.75 (in) / 5.59 – 65.41 (cm),20 mil: Code 39; 2.2:1 – 80%MRD: 1 – 34 (in) / 2.54 – 86.36 (cm),Code 39; 2.2:1 – 25%MRD: 1 -27.25 (in) / 2.54 – 69.22 (cm),40 mil: Code 39; 2.2:1 – 80%MRD: 2.2 – 66.75 (in) / 5.59 – 169.55 (cm),55 mil reflective: Code 39; 2.2:1 – 80%MRD: 4 – 75 (in) / 10.16 – 190.5 (cm).
Symbologies Supported	MS-1207WA:All major 1D bar codes
	MS12XX FZY:All major 1D bar codes

Power Specifications
Input Voltage	MS-1207WA:Input Voltage: 5.0 VDC ±10%
	MS12XX FZY:Input Voltage: 5.0 VDC ±10%
Stand-by Current	MS-1207WA:Standby Current: 40 mA (Symbol MS1207 WA)Scan Current: 110 mA
	MS12XX FZY:Standby Current: 20 mA (Symbol MS1204 FZY),20 mA (Symbol MS1207 FZYScan Current: 160 mA

Environment Characteristics
Ambient Light Tolerance	MS-1207WA:Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)
	MS12XX FZY:Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)
Drop Specification	MS-1207WA:Unit functions normally after multiple 30 in (76 cm) drops to concrete
	MS12XX FZY:Unit functions normally after multiple 30 in (76 cm) drops to concrete
Humidity	MS-1207WA:5% to 95% non-condensing
	MS12XX FZY:5% to 95% non-condensing
Operating Temperature	MS-1207WA:32° to 104° F (0 – 40°C)
	MS12XX FZY:Operating Temp.: -4° to 122°F (-20° to 50°C)
Storage Temperature	MS-1207WA:Storage Temp.: -40° to 140°F (-40° to 60°C)
	MS12XX FZY:Storage Temp.: -40° to 158°F (-40° to 70°C)

Physical Characteristics
Dimensions	MS-1207WA:1.60H x 2.28W x 2.94D (in)40.64H x 57.91W x 74.76D (mm)
	MS12XX FZY:1.60H x 2.28W x 2.94D (in)40.64H x 57.91W x 74.76D (mm)
Weight	MS-1207WA:4.45 oz./126 g
	MS12XX FZY:4.45 oz./126 g

Options
Regulatory Approvals	MS12XX FZY:Environmental: RoHS compliant
	MS12XX FZY:Environmental: RoHS compliant
	MS-1207WA:Laser Classification: CDRH Class II, IEC Class 2
	MS12XX FZY:Laser Classification: CDRH Class II, IEC Class 2
	MS-1207WA:Electrical Safety: Certified to UL1950, CA C22-2 NO950 ENG60950/IEC950
	MS12XX FZY:Electrical Safety: Certified to UL1950, CA C22-2 NO950 ENG60950/IEC950
	MS12XX FZY:EMI/RFI: FCC Part 15 Class B, ICES-003 Class B EuropeanUnion EMC Directive, Australian SMA
	MS12XX FZY:EMI/RFI: FCC Part 15 Class B, ICES-003 Class B EuropeanUnion EMC Directive, Australian SMA
User Options	MS12XX FZY:Programmable Parameters: Laser On Time, Aim Duration, Power Mode, Trigger Mode,Bi-directional Redundancy, Symbology Types/ Lengths, Data Formatting, Serial Parameters, Beeper Tone
	MS12XX FZY:Programmable Parameters: Laser On Time, Aim Duration, Power Mode, Trigger Mode,Bi-directional Redundancy, Symbology Types/ Lengths, Data Formatting, Serial Parameters, Beeper Tone
