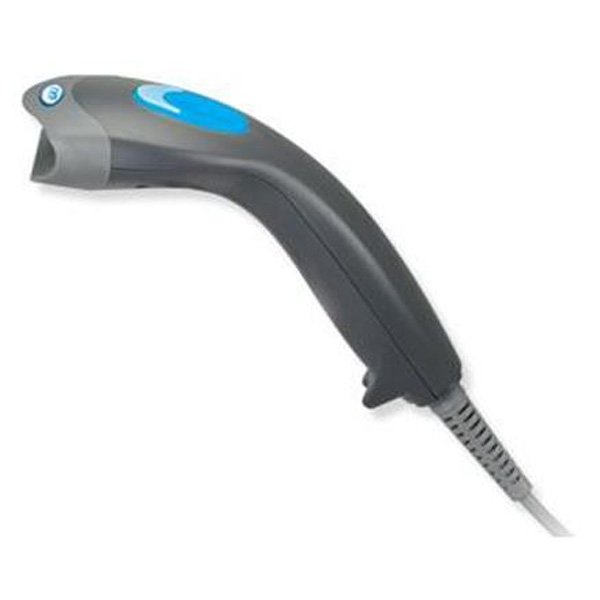

TVSE BS-C 101 STAR CCD Scanner

Enabled with Ultra-Scan – Decoding Technology
Express Speed – With 330 scans per second, ensures quicker checkouts, serves more customers
Aim & Shoot Trigger – Gives operational comfort and reduces fatigue especially in peak hours

✔

Priority order processing • Quality inspected before shipping • Secure packaging

Trusted by Thousands of Customers

Hassle-Free Returns

Fast & Safe Delivery

On orders above ₹999

No questions asked

Brand Official Warranty

100% protected

Scanning Characteristics
Depth Of Field	0-300 mm (UPC/EAN 100%, PCS=90%)
Minimum Bar Width	WidthO.l mm (4 mil) (0.07 mm actually) (Code 39,PCS=90%) More than 100 mm on 0.125 mm barcode
Print Contrast	Min. 30% @ UPC/ EAN 100%
Scan Angle	42°
Scan Rate	330 scans per second

Performance Characteristics
CPU/Processor	Microprocessor – 32 bit
Image Catch	Analog
Indicators	Blue LED
Light Source	617 nm visible LED
Optical System	Linear CCD array
Reading Indicators (Beeper Operation)	Programmable tone & beep time
System Interfaces	Keyboard, RS-232C, HID USB, USB virtual COMport, Wand

Data Capture Characteristics
Decoding Capability	Barcodes – Code 39, Code 39 Full ASCII, Code 32, Code 128, UCC/EAN-128, Codabar, Codell, Code 93,Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5,China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JANwith Addendum, Telepen, MSI/Plessey, GSlDataBar(RSS) Linear, Linear-stacked

Power Specifications
Current Consumption	Operating Current: 100 mA typical
Input Voltage	Voltage 5 V DC ±5%

Environment Characteristics
Ambient Light Levels	0 – 10,000 Lux
Drop Specification	Drop Durability : Designed to withstand 1.5 M drops
EMC Regulation	CE & FCC DOC Compliance, VCCI, BSMI
Humidity	5% – 95% RH (non-condensing)
Operating Temperature	0°C – 50°C (32°F – 122°F)
Storage Temperature	-20°C – 60°C (-4°F – 140°F)

Physical Characteristics
Cable	Field Replaceable, Standard 2.0M Straight
Dimensions	(L) 152.3 x (W) 64.4 x (H) 104.9 mm (deviceonly)
Weight	120 g (device only)
