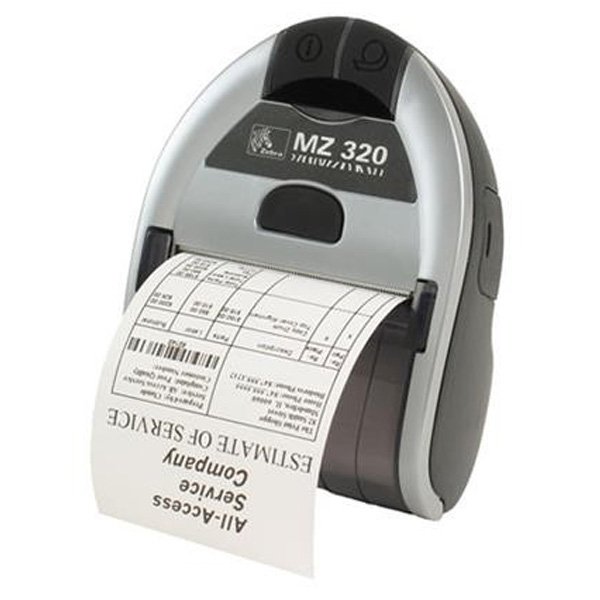

Zebra MZ 320 Mobile Printer
| Printing Characteristics | |
| Character Font/Graphics | 25 types, downloadable, scalable fontsSupports user-defined fonts and graphics, including custom logo |
| Print Length | Maximum print length at least 36″ (914 mm) – actual length depends upon total memory usage |
| Print Width | 2.9″/73.7 mm maximum |
| Printing Speed | 3″ (76 mm)/sec |
| Resolution | 203dpi (8dots per mm) |
| Media Characteristics | |
| Media Roll Diameter | 1.88″(47.8 mm) |
| Media Sensor | Media sensors Reflective |
| Media Thickness | 2 mil(.0508 mm) to 4 mil(0.1016 mm) |
| Media Type | continuous receipt, continuous, receipt |
| Media Width | 3″ (76.2 mm) x 3″ (76.2 mm) |
| Roll Core Inner | 4″(10.2 mm) to .75″(19 mm) |
| Performance Characteristics | |
| Barcodes | Linear Bar Codes: Code 39, Code 93,UCC/ EAN128,Code 128, Codabar (NW-7), Interleaved 2-of-5,UPC-A, UPC-E, 2 & 5 digit add-on, EAN-8, EAN-13, EAN14, 2 & 5 digit add-on2-Dimensional: Aztec, Maxicode, PDF-417, QR-Code, GS1 DataBar™(RSS) family*Contains UFST® from Monotype Imaging, Inc. |
| Memory | 4 MB Flash8 MB RAM |
| Environment Characteristics | |
| Operating Humidity | 10-90% non-condensing |
| Operation Temperature | DT: Operating temp 14° F (-10° C) to 122° F (50° C) Direct thermal |
| Storage Humidity | 10-90% non-condensing |
| Storage Temperature | -4° F (-20° C) to 140° F (60° C) |
| Physical Characteristics | |
| Dimensions (W x H x D) | Width 4.11″(104.4 mm)Height 5.34″ (135.6 mm)Depth 2.26″ (57.4 mm) |
| Weight | 75 lbs (.34 kg) |
| Options | |
| Agency Approvals | FCC Part 15 and EN55022 Class B limitsFCC, ICS, and European Standards for Bluetooth and 802.11b/gCSA and IEC 60950 standard for SafetyNOMC-tickVCCIS-Mark |
| User Options | Orientation CenterCore programming languages CPCL-native |
