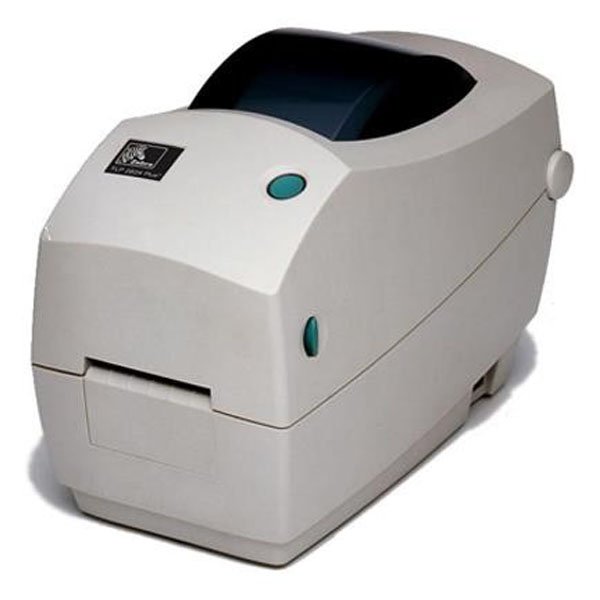

Zebra TLP 2824 Plus Desktop Barcode Printer

Print methods: Direct thermal or direct thermal/thermal transfer
Odometer for printer length tracking
Unicode compliant for multi-language printing
Reset feature button
Construction: ABS double-walled casing
OpenACCESS design for easy media loading

🌍 Worldwide Shipping Available

🛡 International Warranty Support

🔒 Secure Payment Options

Free Delivery

On orders above ₹999

7 Days Replacement

No questions asked

1 Year Warranty

Brand Official Warranty

Secure Payment

100% protected

Description
Reviews 0

Zebra TLP 2824 Plus Desktop Barcode Printer

Printing Characteristics
Print Length	39″ (991mm)
Print Speed	4″ (102mm)/sec
Print Width	2.2″ (56mm)
Printer Head	EPL, EPL-Page Mode, EPL2, ZPL II
Resolution	203dpi (8 dots/mm)

Media Characteristics
Label Length	2.36″ (60mm)39″ (991mm)
Media Core Diameter	1.0″ (25.4mm) and 1.5″ (38mm)
Media Roll Diameter	5″ (127mm)
Media Sensor	Reflective Transmissive
Media Thickness	0.003″ (0.08mm) to 0.007″ (0.18mm)
Media Type	(black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, tag stock
Media Width	1.00″ (25.4mm)

Ribbon Characteristics
Ribbon Length	244′ (74m)
Ribbon Width	1.33″ (33.8mm) to 2.24″ 958mm)
Core Inner Diameter	0.5″ (12.7mm)

Performance Characteristics
Interface	USB and Serial Rs232 with auto-sensing serial port Centronics Parallel (36 pin) 10/100 internal Ethernet with USB (option)
Memory	8MB SDRAM, 4MB Flash (standard)64 MB Flash with real-time clock for a total of 68 MB (option)

Fonts / Graphics / Symbologies
Barcode Symbologies	1D:Code 128 Code 39 Code 93 EAn-13 EAN-8 Industrial 2-of-5 Interleaved 2-of-5 Logmars MSI Plessey Postnet RSS-14 (limited, truncated, stacked Standard 2-fo-5 UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E UPC-A EAN-14 Code 128 with subsets A/B/C UCC/EAN-128 UPC-A and UPC-E with 2 or 5 digit extensions EAN-8 and EAN-13 with 2 or 5 digit extensions Japanese Postnet MSI-3 German Post Code
	2D:Codablock Code 49 Data Matrix MaxiCode MicroPDF417 PDF417 QR CodeRSS / GS1 DataBar family (12 barcodes) Aztec
Character Sets	16 resident expandable ZPL II bitmap fonts
Graphics	5 resident expandable EPL2 fonts

Environment Characteristics
Humidity	10 to 90% non condensing5 to 95% non condensing
Operating Environment	Operating temperature 40F (5C) to 105F (41C) Thermal TransferOperating temperature 40F (5C) to 105F (41C) Direct Thermal
Storage Environment	-40F (-40C) to 140F (60C)
User Options	64MB Flash memory with real-time clock for a total of 68 MB Internal 10/100 Ethernet connectivity combined with USB Cutter for continuous paper, label liner (with no adhesives), and tag stock (no more than 0.007″/0.18mm thick) Label dispenser for label peel and present with label taken sensor Asian language support ZBI 2.0 – field upgradeable

Physical Characteristics
Dimensions (W x L x H)	5.3″ (135mm)7.0″ (178mm)9.5″ (241mm)
Power Requirements	Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Weight	3.5lbs (1.6kg)
