| Scanning Characteristics | |
| Motion Tolerance | Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus |
| Print Contrast Ratio | Symbol Contrast 20% minimum reflectance difference |
| Reading Perfomance | Narrow Width |High Density (HD) |Standard Range (SR) |Extended Range (ER):-5 mil Code |39 0 mm – 104.1 mm (0? – 4.1?)| 27.9 mm – 134.6 mm (1.1? – 5.3?) | 94 mm – 203.2 mm (3.7? – 8.0?). |
| Scan Angle | HD Focus: Horizontal 41.4°; Vertical: 32.2°SR Focus: Horizontal: 42.4°; Vertical: 33°ER Focus: Horizontal: 31.6°; Vertical: 24.4°Pitch, Skew 45°, 65° |
| Scan Pattern | Area Image (838 x 640 pixel array) |
| Performance Characteristics | |
| Host System Interfaces | USB, Keyboard Wedge, RS232, IBM 46xx (RS485) |
| Data Capture Characteristics | |
| Decoding Capability | Reads standard 1D, PDF, 2D, Postal and OCR symbologies |
| Power Specifications | |
| Input Voltage | 4 VDC to 5.5 VDC |
| Operating Power | 2.3 W (450mA @ 5 VDC) |
| Standby Power | 0.45 W (90mA @ 5 VDC) |
| Environment Characteristics | |
| Drop Specification | Designed to withstand 50 1.8 m (6´) drops to concreteRatchet stand: Designed to withstand 50 1.2 m (4´) drops to concrete on each of the faces |
| Environment Sealing | IP41 |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Ratchet Cycles | The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either up or down)without losing its ability to keep the scanner in any ratchet position |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Physical Characteristics | |
| Dimensions | 104 mm x 71 mm x 160 mm (4.1? x 2.8? x 6.3?) |
| Weight | 147 g (5.2 oz) |

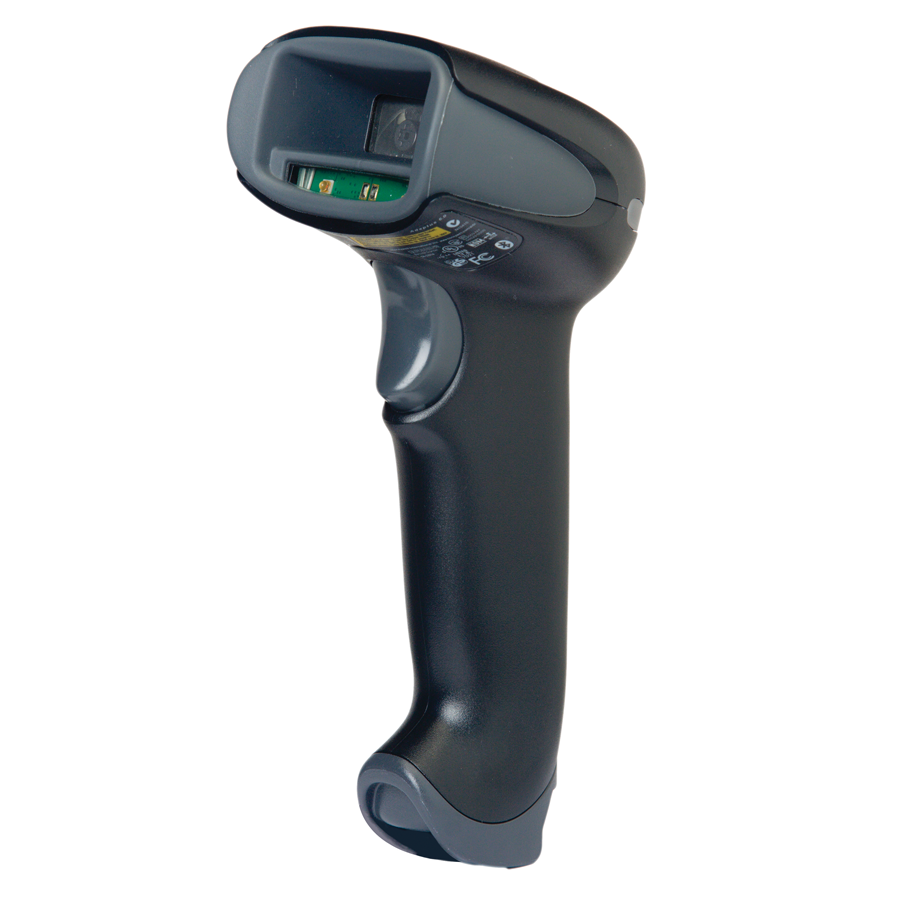

Honeywell Xenon 1900 Color Area Imager Scanner
- ColorFusion Technology: Allows color images to be captured and high contrast color bar codes to be scanned, without negatively impacting bar code scanning performance
- Custom Sensor Optimized for Bar Code Scanning: Improves scanning aggressiveness and protects investment by providing supply chain stability
- Two Focal Options: High density and standard range options provide application-specific scanning, leading to improved productivity
